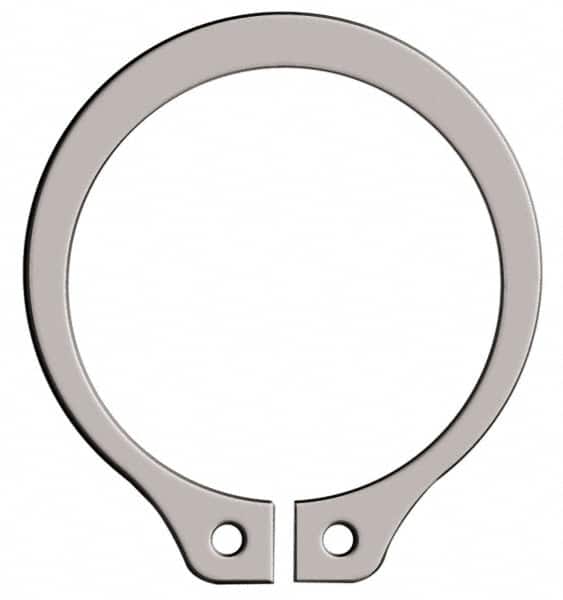

1-7/8″ Shaft Diam, 44.93mm Groove Diam, Steel External Snap Retaining Ring 2.44″ Free OD, 44.07mm Free ID, 1.73mm Groove Width x 0.053″ Groove Depth, 1.57mm Ring Thickness, Grade 1060-1090, Military Spec

Item #: 79949434
Brand: Rotor Clip
Model #: SH-187ST MCD

Product Specifications

System of Measurement	Inch
Groove Diameter	1.769 in
Groove Diameter Tolerance	-0.0050 to 0.0050 in
Shaft Diameter (mm)	47.63
Shaft Diameter (Inch)	1-7/8
Shaft Diameter (Decimal Inch)	1.8750
Free Diameter	1.735 in
Free Outside Diameter	2.44 in
Groove Diameter (Decimal Inch)	1.7690
Groove Diameter (mm)	44.93
Material	Spring Steel
Free Outside Diameter (Decimal Inch)	2.4400
Free Diameter (mm)	44.07
Free Diameter (Decimal Inch)	1.7350
Military Specification	MS 16624-1137; Does Not Meet Military Specifications; MS 16624-1043; MS 16624-1087; MS 16624-1175; MS 16624-1187; MS 16624-1075; MS 16624-1025; MS 16624-1037; MS 16624-1125; MS 16624-1100; MS 16624-1050; MS 16624-1062; MS 16624-1150
Finish	Cadmium Plated
Military Specification	MS 16624-1187
Inside Diameter	44.07 mm
Finish/Coating	Cadmium-Plated
Groove Width Tolerance	0.000 to 0.004 in
Groove Depth	0.053 in
Ring Thickness Tolerance	-0.003 to 0.003 in
Meets Specification	Yes
Standards	SAE 1060-1090; UNS G10600-G10900
Material Grade	1060-1090
Groove Width (Decimal Inch)	0.068 in; 1.73 mm
Groove Width (mm)	1.73
Groove Depth (Decimal Inch)	0.0530
Ring Thickness (Decimal Inch)	1.57 mm; 0.062 in
Ring Thickness (mm)	1.57
Groove Diameter Tolerance (Decimal Inch)	-0.0050 to 0.0050
Groove Width Tolerance (Decimal Inch)	0.000 to 0.004
Free Diameter Tolerance (Decimal Inch)	-0.020 to 0.013
Ring Thickness Tolerance (Decimal Inch)	-0.003 to 0.003
Ring Thickness Tol. (Plated Ring) (Decimal Inch)	-0.003 to 0.003
Hardness	Rockwell C47-C52
Fastener Standard	SAE 1060-1090; UNS G10600-G10900

Show More

MSC Part #	79949434
Mfr Part #	SH-187ST MCD
Big Book Page #	2095
Country of OriginCountry of Origin is subject to change	UNITED STATES
