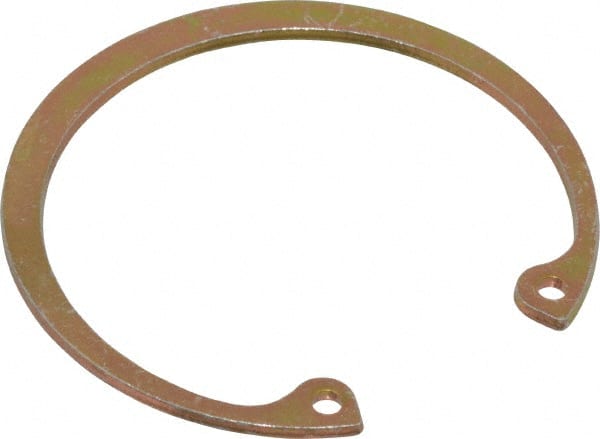

Rotor Clip - 0.062" Thick, Cadmium-Plated Finish, Steel Snap Internal Retaining Ring - 0.068" Groove Width, 0.057" Groove Depth, 1.989" Groove Diam, Grade 1060-1090
Item #: 79949566
Brand: Rotor Clip
Model #: HO-187ST MCD
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Snap |
| Material | Steel |
| System of Measurement | Inch |
| Bore Diameter (Inch) | 1-7/8 |
| Bore Diameter (Decimal Inch) | 1.8750 |
| Bore Diameter (mm) | 47.63 |
| Groove Diameter (Decimal Inch) | 1.9890 |
| Groove Diameter (mm) | 50.52 |
| Groove Width (Decimal Inch) | 0.0680 |
| Groove Width (mm) | 1.73 |
| Free Outside Diameter (Decimal Inch) | 2.0700 |
| Free Outside Diameter (mm) | 52.58 |
| Military Specification | MS 16625-1187 |
| Ring Thickness (Decimal Inch) | 0.0620 |
| Ring Thickness (mm) | 1.57 |
| Material Grade | 1060-1090 |
| Finish/Coating | Cadmium-Plated |
| Groove Depth (Decimal Inch) | 0.0570 |
| Groove Depth (mm) | 1.45 |
| Groove Diameter Tolerance (Decimal Inch) | -0.0050 to 0.0050 |
| Groove Width Tolerance (Decimal Inch) | 0.000 to 0.004 |
| Free Outside Diameter Tolerance (Decimal Inch) | -0.025 to 0.035 |
| Ring Thickness Tolerance (Decimal Inch) | -0.003 to 0.003 |
| Thrust Load (Lb.) | 16697 (Ring Safety Factor); 9050 (Groove Safety Factor) |
| Hardness | Rockwell C 47-52 |
| Fastener Standard | SAE 1060-1090; UNS G10600-G10900 |
