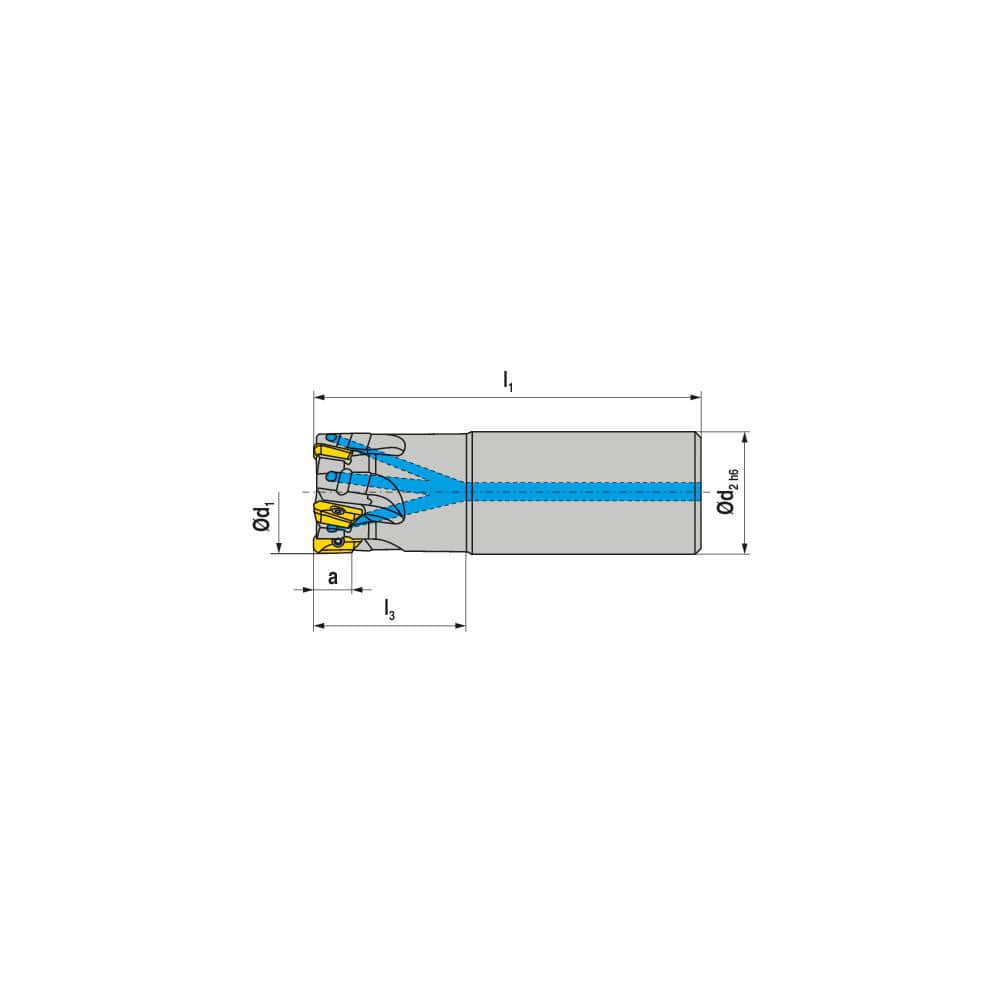

Indexable Square-Shoulder End Mill: C211.12.R.02-07-A-20, 12.0000'' Shank Dia, Cylindrical Shank Uses 2, Normal Pressure, 66.50 mm OAL
Item #: 79952099
Brand: Ceratizit
Model #: 50752012
Product Specifications
| Minimum Cutting Diameter (mm) | 12.00 |
| Maximum Cutting Diameter (mm) | 12.00 |
| Maximum Depth of Cut (mm) | 6.00 |
| Cutter Style | C211 |
| Shank Type | Cylindrical |
| Shank Diameter (Decimal Inch) | 12.0000 |
| Shank Diameter (Inch) | 12 |
| Maximum Ramping Angle | 7.9 |
| Insert Holding Method | Screw |
| Overall Length (mm) | 66.50 |
| Tool Material | Steel |
| Series | C211-07 |
| Flute Type | Straight |
| Lead Angle | 90 |
| Shank Length (mm) | 46.50 |
| Head Length (mm) | 20.00 |
| Maximum RPM | 66600 |
| Tool Application | Facing; Milling; Shouldering; Slotting |
| Primary Workpiece Material | Universal |
| Usable Length (mm) | 20.000 |
| Number Of Flutes | 2 |
| Number Of Cutter Inserts | 2 |
| Coolant Through | Normal Pressure |
