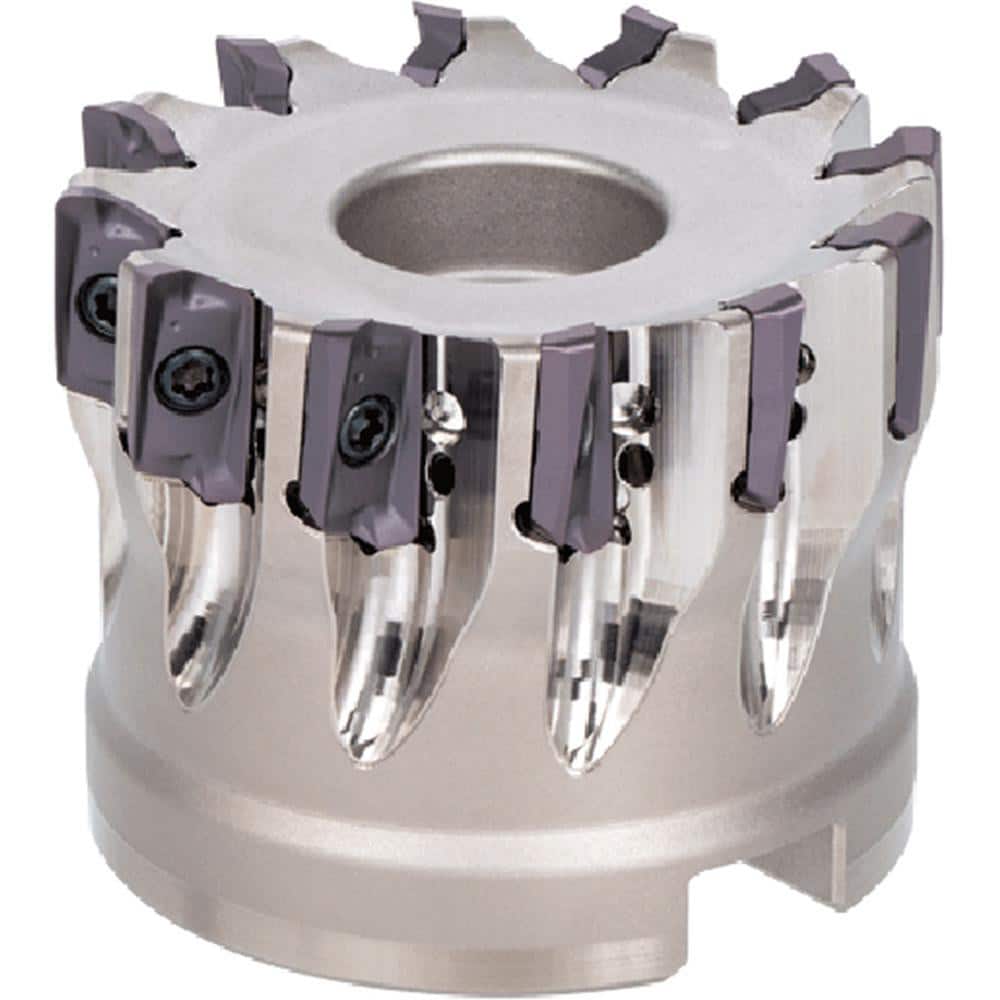

Indexable Square-Shoulder Face Mill: TPAV12M063B22.0R14, 22.0000″ Arbor Hole Dia, Uses 14, AVMT Inserts, Through Coolant, Series TPAV
Item #: 79952446
Brand: Tungaloy
Model #: 6839242
Product Specifications
| Minimum Cutting Diameter (mm) | 63.00 |
| Maximum Cutting Diameter (mm) | 63.00 |
| Maximum Depth of Cut (mm) | 11.50 |
| Arbor Hole Diameter (mm) | 22.00 |
| Arbor Hole Diameter (Inch) | 22 |
| Arbor Hole Diameter (Decimal Inch) | 22.0000 |
| Compatible Insert Size Code | AVMT |
| Maximum Ramping Angle | 1.00 |
| Cutter Style | TPAV |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Lead Angle | 90 |
| Rake | Positive (Axial); Negative (Radial) |
| Rake Angle | 6.0 |
| Series | TPAV |
| Overall Height (Mm - 5 Decimals) | 40.00 |
| Keyway Width (mm) | 10.40 |
| Keyway Width (Decimal Inch) | 10.4000 |
| Hub Diameter (mm) | 47.00 |
| Hub Diameter (Decimal Inch) | 47.0000 |
| Hub Diameter (Inch) | 47 |
| Tool Application | Shouldering |
| Primary Workpiece Material | Universal |
| Toolholder Material | Steel |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 14 |
