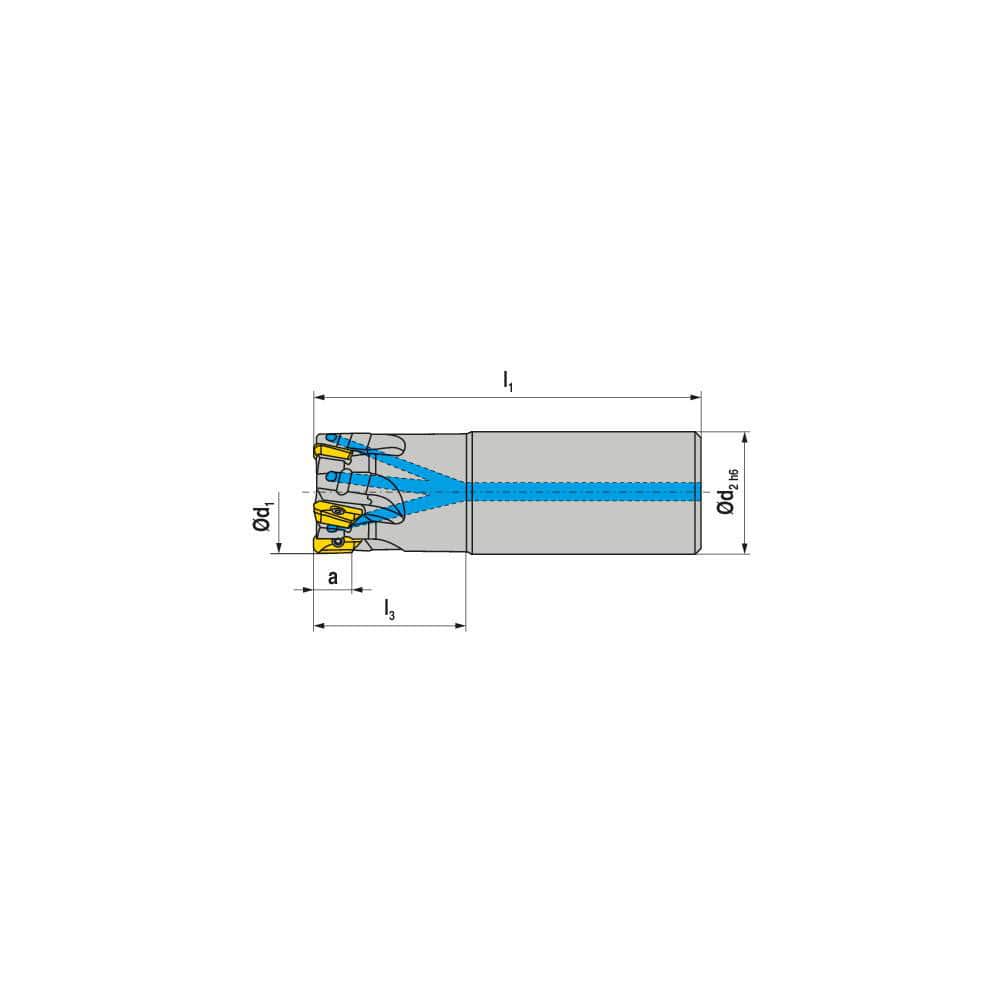

Indexable Square-Shoulder End Mill: C2110500R0207A0750EF, 0.5000'' Cut Dia, 0.2360'' Max Depth of Cut, 0.5000'' Shank Dia, Cylindrical Shank Uses 2, Normal Pressure,
Item #: 79955548
Brand: Ceratizit
Model #: 5875205002
Product Specifications
| Minimum Cutting Diameter (Decimal Inch) | 0.5000 |
| Minimum Cutting Diameter (Inch) | 1/2 |
| Maximum Cutting Diameter (Decimal Inch) | 0.5000 |
| Maximum Cutting Diameter (Inch) | 1/2 |
| Maximum Depth of Cut (Decimal Inch) | 0.2360 |
| Cutter Style | C211 |
| Shank Type | Cylindrical |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Shank Diameter (Inch) | 1/2 |
| Maximum Ramping Angle | 7.8 |
| Insert Holding Method | Screw |
| Overall Length (Decimal Inch) | 3.0000 |
| Tool Material | Steel |
| Series | C211-07 |
| Flute Type | Straight |
| Lead Angle | 90 |
| Shank Length (Inch) | 2-1/2 |
| Shank Length (Decimal Inch) | 2.2500 |
| Head Length (Inch) | 3/4 |
| Head Length (Decimal Inch) | 0.7500 |
| Maximum RPM | 66600 |
| Tool Application | Facing; Milling; Shouldering; Slotting |
| Primary Workpiece Material | Universal |
| Number Of Flutes | 2 |
| Usable Length (Decimal Inch) | 0.7500 |
| Number Of Cutter Inserts | 2 |
| Coolant Through | Normal Pressure |
