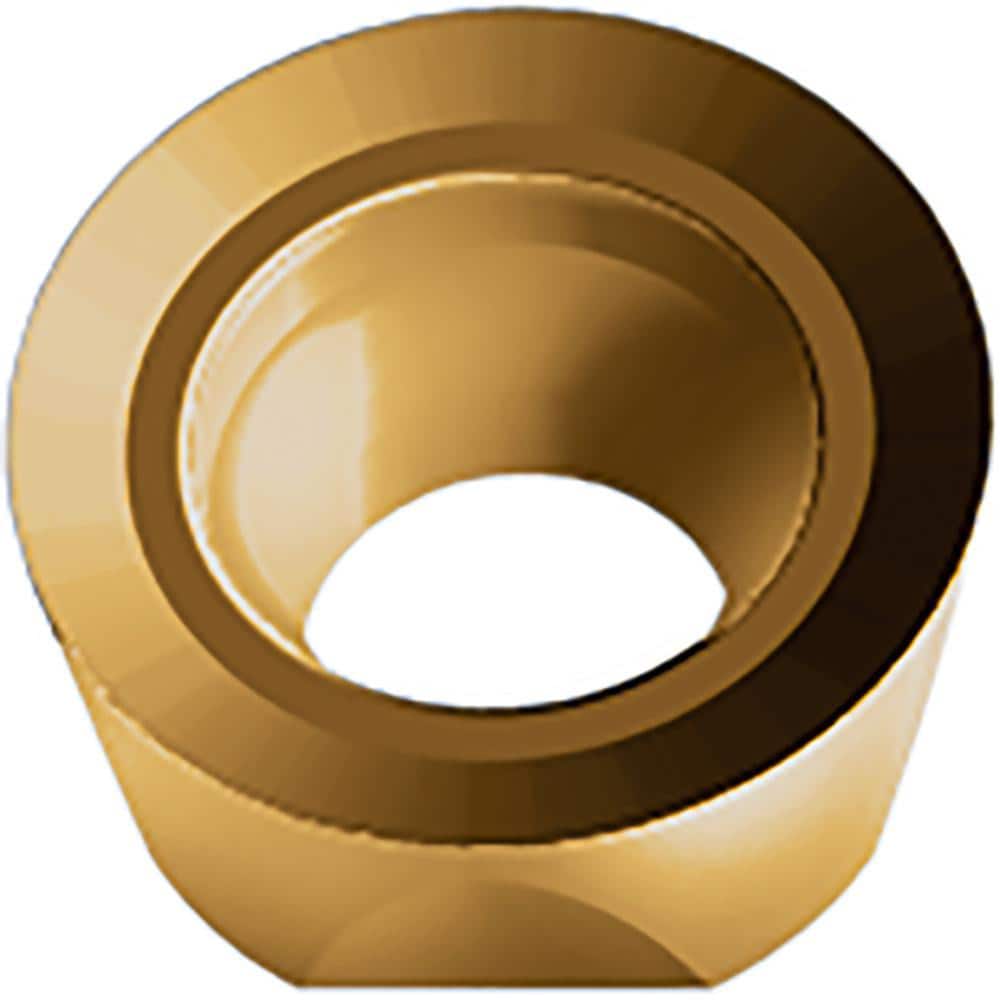

Milling Insert: WMP45G, Solid Carbide N/A Finish,
Item #: 79958906
Brand: Walter
Model #: 8182158
Product Specifications
| Insert Style | ROMX |
| Insert Size Code | 10T3M0 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | WMP45G |
| Inscribed Circle (Decimal Inch) | 0.3940 |
| Corner Radius (Decimal Inch) | 0.1970 |
| Insert Hand | Neutral |
| Series | ROMX10 |
| Coating Process | CVD |
| Hole Diameter (Decimal Inch) | 0.1730 |
| Maximum Depth of Cut (Decimal Inch) | 0.1970 |
| Number Of Cutting Edges | 4 |
| Insert Shape | Round |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel; Steel |
| Primary Workpiece Material Code | P; M |
| Secondary Workpiece Material | Super-Alloys & Titanium; Stainless Steel; Steel |
| Secondary Workpiece Material Code | S |
| Chip Breaker | D57 |
| Coating/Finish | Coated |
| Thickness (Decimal Inch - 4 Decimals) | 0.1560 |
