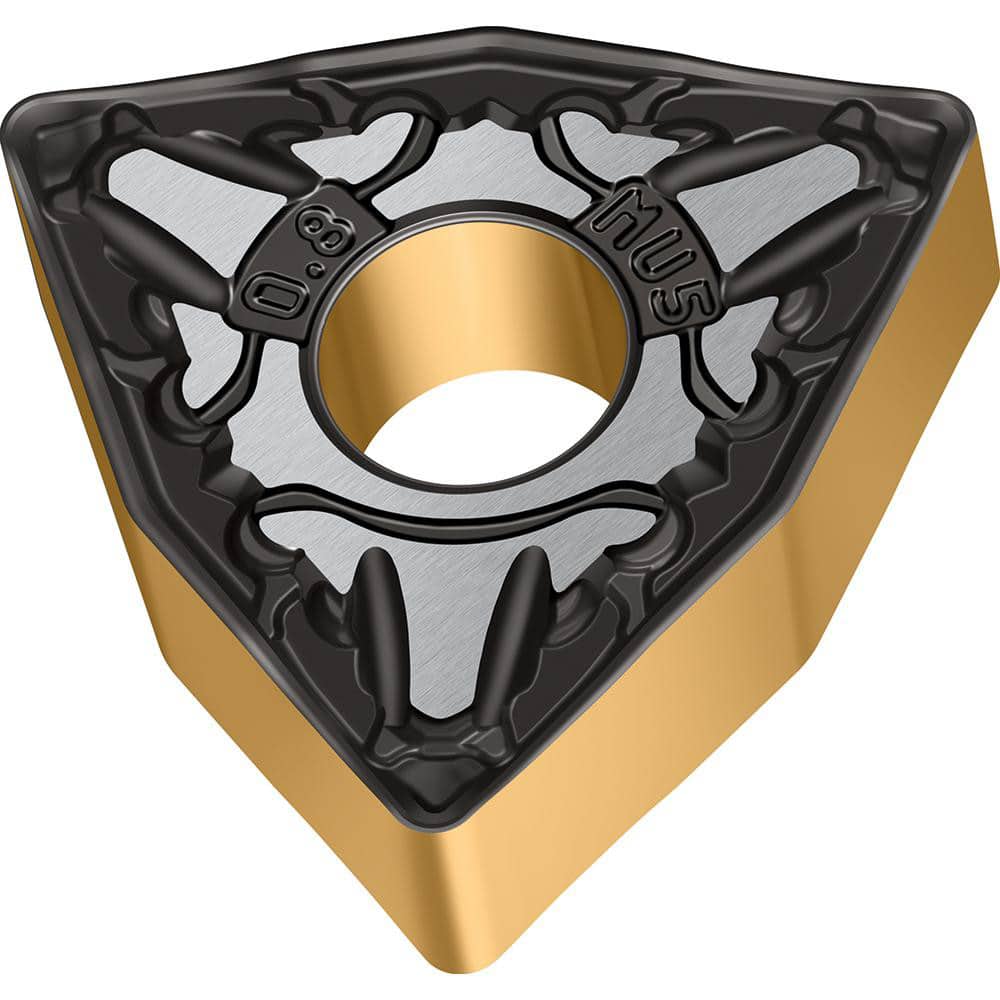

Turning Insert: WNMG332-MU5 WPP20G, Solid Carbide TiCN, Al2O3 & TiN Finish, Neutral, 0.2570″ Long, 3/8″ Inscribed Circle, 0.0310″ Corner Radius, 80.0 ° N/A Trigon, Series WNMG-MU5
Item #: 79967576
Brand: Walter
Model #: 8115911
Product Specifications
| Insert Style | WNMG |
| Insert Shape Code | W |
| Insert Size Code | 332 |
| Insert Shape | Trigon |
| Clearance Code | N |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | WPP20G |
| Hole Diameter (Decimal Inch) | 0.1500 |
| Maximum Depth of Cut (Decimal Inch) | 0.2570 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Holding Method | Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1880 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Included Angle | 80.0 |
| Relief Angle | 0 |
| Series | WNMG-MU5 |
| Coating Process | CVD |
| Rake | Negative |
| Wiper Edge | No |
| Insert Length (Decimal Inch) | 0.2570 |
| Number Of Cutting Edges | 6 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Cast Iron |
| Secondary Workpiece Material Code | K |
| Ansi Code | WNMG332MU5WPP20G |
| Iso Code | WNMG060408-MU5 WPP20G |
| Chip Breaker | MU5 |
| Coating/Finish | TiCN; TiN; Al2O3 |
