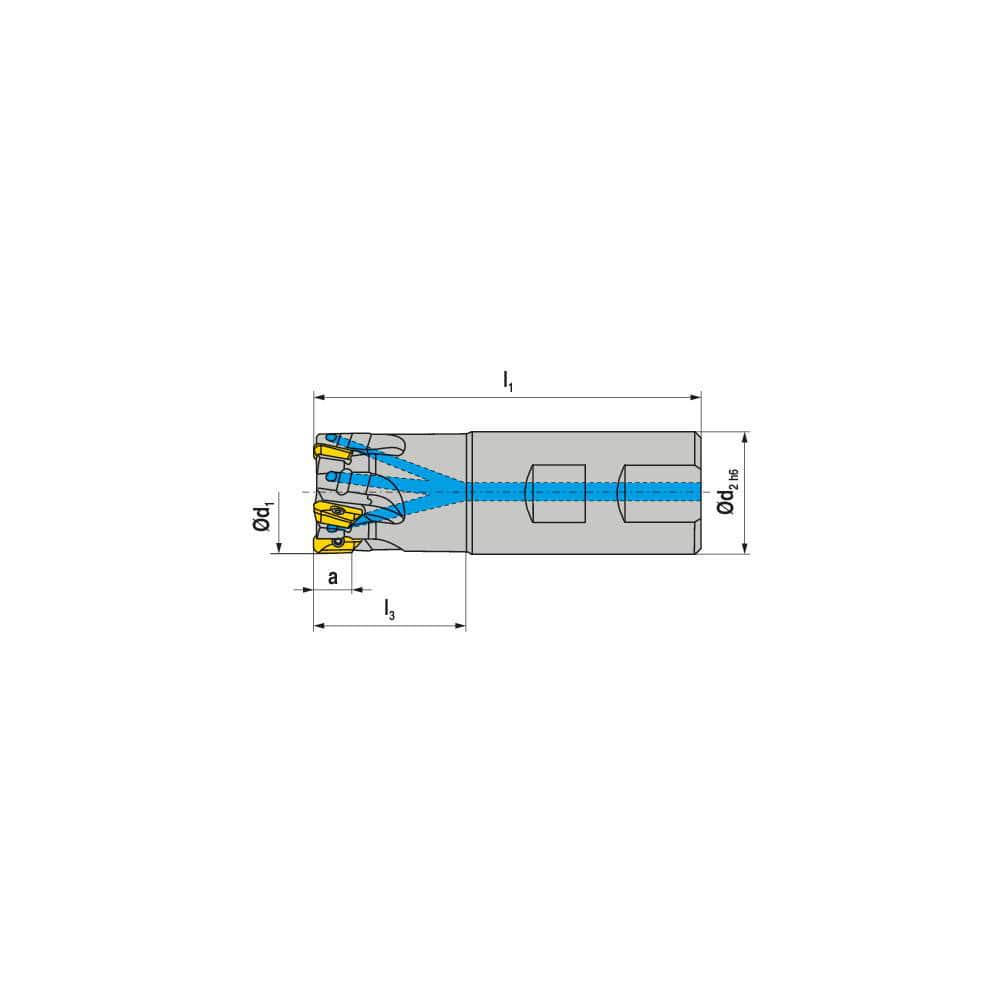

Indexable Square-Shoulder End Mill: C211.20.R.02-11-B-25, 20.0000'' Shank Dia, Weldon Flat Shank Uses 2, Normal Pressure, 77.00 mm OAL
Item #: 79979365
Brand: Ceratizit
Model #: 5073702002
Product Specifications
| Minimum Cutting Diameter (mm) | 20.00 |
| Maximum Cutting Diameter (mm) | 20.00 |
| Maximum Depth of Cut (mm) | 10.00 |
| Cutter Style | C211 |
| Shank Type | Weldon Flat |
| Shank Diameter (Decimal Inch) | 20.0000 |
| Shank Diameter (Inch) | 20 |
| Maximum Ramping Angle | 9.8000000000000007 |
| Insert Holding Method | Screw |
| Overall Length (mm) | 77.00 |
| Tool Material | Steel |
| Series | C211-11 |
| Flute Type | Straight |
| Lead Angle | 90 |
| Shank Length (mm) | 52.00 |
| Head Length (mm) | 25.00 |
| Maximum RPM | 27700 |
| Tool Application | Facing; Milling; Shouldering; Slotting |
| Primary Workpiece Material | Universal |
| Usable Length (mm) | 25.000 |
| Number Of Flutes | 2 |
| Number Of Cutter Inserts | 2 |
| Coolant Through | Normal Pressure |
