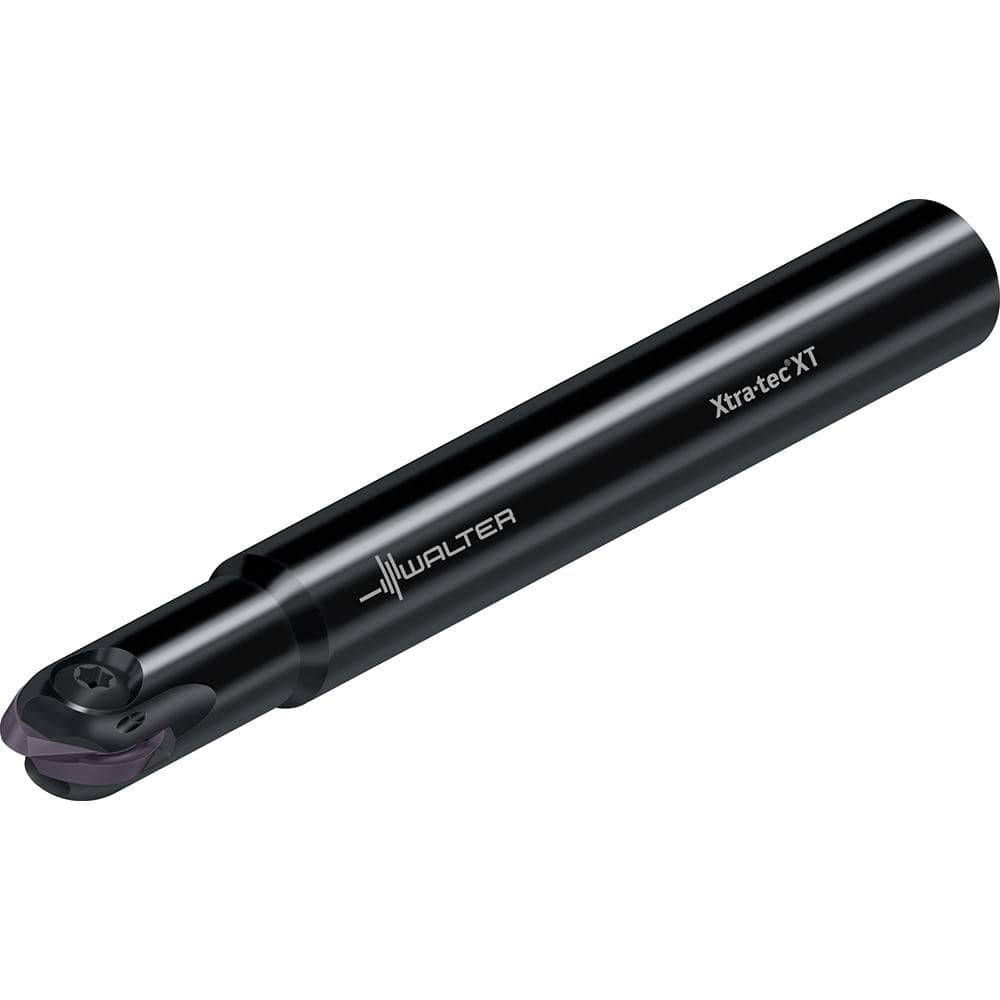

Indexable Ball Nose End Mills; Milling Diameter: 0.5000 in; Maximum Depth Of Cut: 0.2360 in; Shank Diameter: 0.5000 in; Shank Type: Cylindrical; Compatible Insert Style: P3204; P3201; Compatible Insert Size Code: D12.70; Toolholder Style: M5460; Series: M
Item #: 79979456
Brand: Walter
Model #: 8092850
Product Specifications
| Milling Diameter | 0.5000 in |
| Maximum Depth Of Cut | 0.2360 in |
| Shank Diameter | 0.5000 in |
| Shank Type | Cylindrical |
| Compatible Insert Style | P3204; P3201 |
| Compatible Insert Size Code | D12.70 |
| Toolholder Style | M5460 |
| Series | M5460-A-INCH |
| Overall Length (mm) | 5.12 |
| Overall Length (Decimal Inch) | 5.12 |
| Overall Length (Inch) | 5.12 |
| Tool Application | Profile Milling |
| Primary Workpiece Material | Hard Material; Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; H; K; M |
| Insert Holding Method | Screw |
| Toolholder Material | Steel |
| Through Coolant | Normal Pressure |
| Tapered Neck | No |
| Number of Flutes | 1 |
