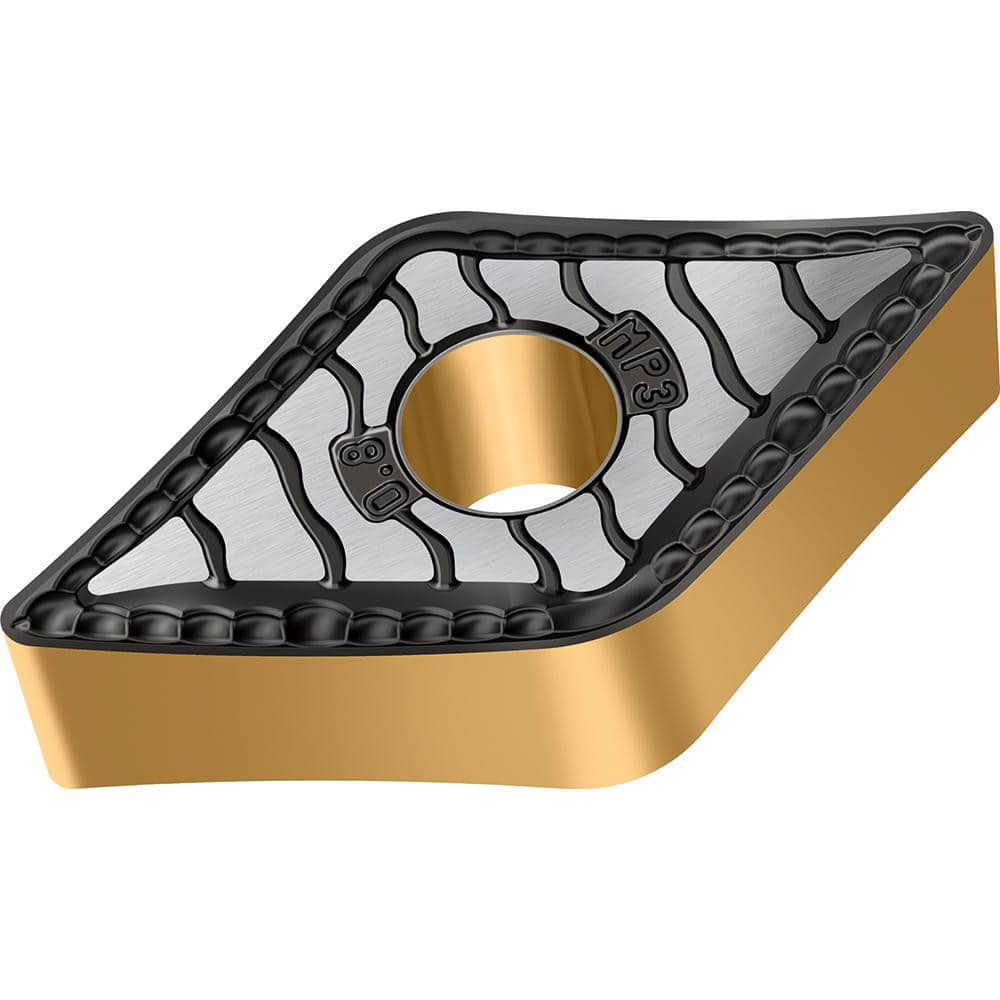

Turning Insert: DNMG431-MP3 WPP10G, Solid Carbide TiCN, Al2O3 & TiN Finish, Neutral, 0.6100″ Long, 1/2″ Inscribed Circle, 0.0160″ Corner Radius, 55.0 ° N/A Diamond, Series DNMG-MP3
Item #: 79987038
Brand: Walter
Model #: 8115768
Product Specifications
| Insert Style | DNMG |
| Insert Shape Code | D |
| Insert Size Code | 431 |
| Insert Shape | Diamond |
| Clearance Code | N |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | WPP10G |
| Hole Diameter (Decimal Inch) | 0.2030 |
| Maximum Depth of Cut (Decimal Inch) | 0.6100 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Holding Method | Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1880 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Included Angle | 55.0 |
| Relief Angle | 0 |
| Series | DNMG-MP3 |
| Coating Process | CVD |
| Rake | Negative |
| Wiper Edge | No |
| Insert Length (Decimal Inch) | 0.6100 |
| Number Of Cutting Edges | 4 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Cast Iron |
| Secondary Workpiece Material Code | K |
| Ansi Code | DNMG431MP3WPP10G |
| Iso Code | DNMG150404-MP3 WPP10G |
| Chip Breaker | MP3 |
| Coating/Finish | TiCN; TiN; Al2O3 |
