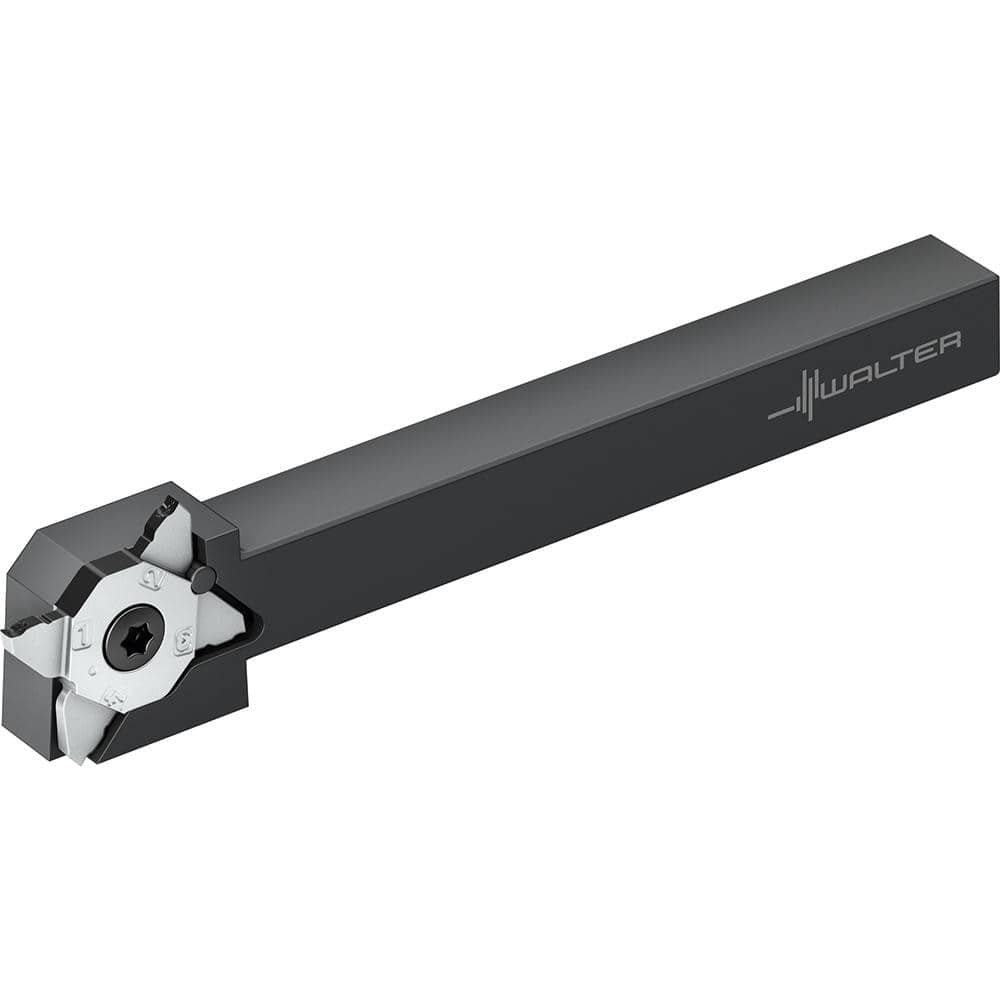

Indexable Grooving Toolholder: G3011-1616R-MX22-2, 0.1280″ Max Groove Width 0.2360″ Max Depth, Uses MX22-2 Inserts, 0.6300″ Shank Height, Through Coolant
Item #: 79989521
Brand: Walter
Model #: 8167141
Product Specifications
| Toolholder Type | External Grooving |
| Insert Seat Size | 22 |
| Cutting Direction | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.2360 |
| Minimum Groove Width (Decimal Inch) | 0.0200 |
| Toolholder Style | G3011 |
| Maximum Groove Width (Decimal Inch) | 0.1280 |
| Insert Holding Method | Screw |
| Compatible Insert Size Code | MX22-2 |
| Shank Width/Diameter (Decimal Inch) | 0.6300 |
| Shank Height (Decimal Inch) | 0.6300 |
| Series | G3011-R-MX |
| Overall Length (Decimal Inch) | 4.7200 |
| Multi-use Tool | Yes |
| Cutting Tool Application | Grooving; Turning; Parting |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.5600 |
| Head Length (Decimal Inch) | 1.0240 |
| Primary Workpiece Material | Super-Alloys & Titanium; Stainless Steel; Steel |
| Primary Workpiece Material Code | P; S; M |
| Toolholder Material | Steel |
| Coolant Through | Yes |
