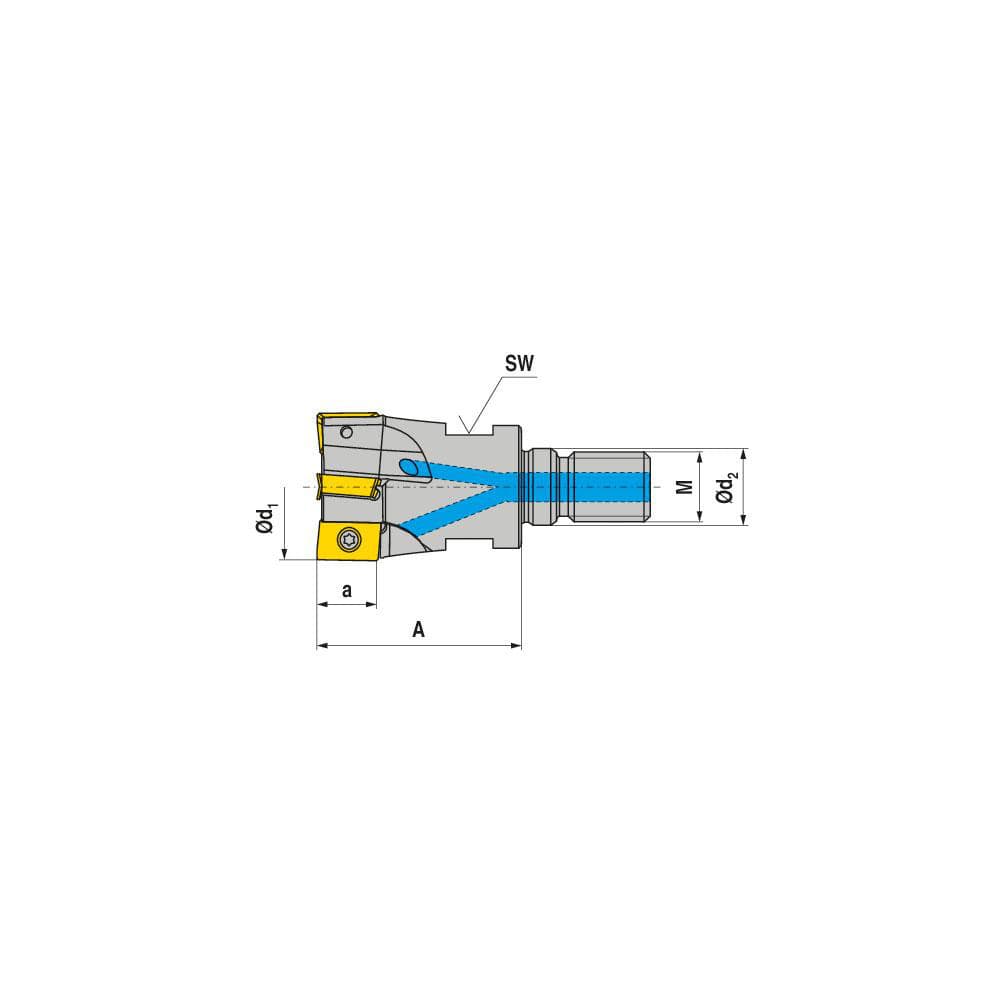

Indexable Square-Shoulder End Mill: G141.25.R.02-15, 12.0000'' Shank Dia, 12.00 mm Modular Connection, Modular Shank Uses 2, Normal Pressure, 35.00 mm OAL
Item #: 79993697
Brand: Ceratizit
Model #: 50770025
Product Specifications
| Minimum Cutting Diameter (mm) | 25.00 |
| Maximum Cutting Diameter (mm) | 25.00 |
| Maximum Depth of Cut (mm) | 14.00 |
| Cutter Style | G141 |
| Shank Type | Modular |
| Shank Diameter (Decimal Inch) | 12.0000 |
| Shank Diameter (Inch) | 12 |
| Maximum Ramping Angle | 2 |
| Insert Holding Method | Screw |
| Overall Length (mm) | 35.00 |
| Tool Material | Steel |
| Series | G141-15 |
| Flute Type | Straight |
| Lead Angle | 90 |
| Head Length (mm) | 35.00 |
| Modular Connection Size | 12.00 mm |
| Tool Application | Facing; Milling; Shouldering; Slotting |
| Primary Workpiece Material | Universal |
| Usable Length (mm) | 35.000 |
| Number Of Flutes | 2 |
| Number Of Cutter Inserts | 2 |
| Coolant Through | Normal Pressure |
