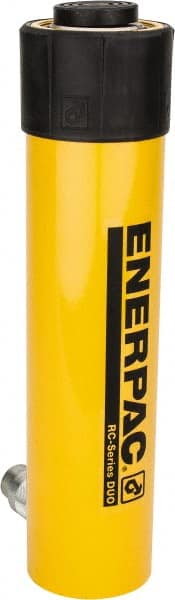

Enerpac - 25 Ton, 10.25" Stroke, 52.86 Cu In Oil Capacity, Portable Hydraulic Single Acting Cylinder - 5.16 Sq In Effective Area, 14.75" Lowered Ht., 25" Max Ht., 2.56" Cyl Bore Diam, 2.25" Plunger Rod Diam, 10,000 Max psi
Item #: 80013147
Brand: Enerpac
Model #: RC2510
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Single Acting |
| Load Capacity (Ton) | 25 |
| Piston Stroke (Decimal Inch) | 10.25 |
| Cylinder Bore Diameter (Decimal Inch) | 2.56 |
| Lowered Height | 14.75 |
| Oil Capacity | 52.86 |
| Effective Area | 5.16 |
| Maximum Height (Decimal Inch) | 25.00 |
| Outside Diameter (Inch) | 3-3/8 |
| Plunger Diameter | 2.25 |
| Base To Inlet Port (Inch) | 1 |
| Saddle Diameter (Inch) | 2.00 |
| Plunger Internal Thread Size | 1-1/2 - 16 |
| Plunger Internal Thread Length | 1.00 |
| Collar Thread | 3-5/16 - 12 |
| Collar Thread Length (Inch) | 1.94 |
| Base Mounting Holes Bolt Circle (Inch) | 2-5/16 |
| Two Base Mounting Holes Thread Size | 1/2-13 |
| Base Mounting Hole Thread Depth (Inch) | 0.75 |
| Maximum Pressure (psi) | 10000 |
