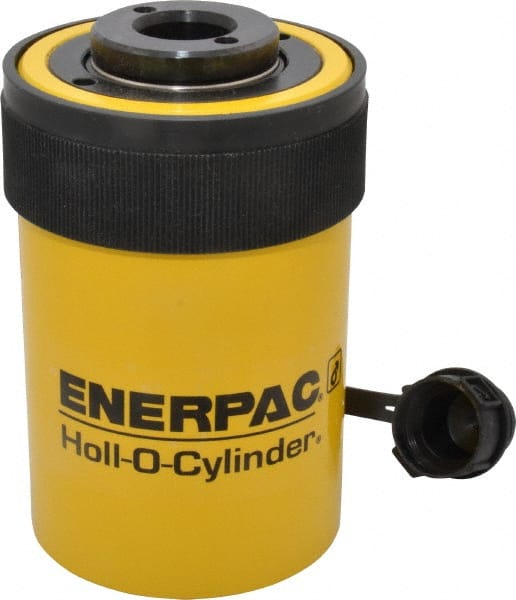

Enerpac - 20 Ton, 2" Stroke, 9.46 Cu In Oil Capacity, Portable Hydraulic Hollow Hole Cylinder - 4.73 Sq In Effective Area, 6.38" Lowered Ht., 8.38" Max Ht., 2.88" Cyl Bore Diam, 2.13" Plunger Rod Diam, 10,000 Max psi
Item #: 80016587
Brand: Enerpac
Model #: RCH202
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Hollow Hole |
| Load Capacity (Ton) | 20 |
| Piston Stroke (Decimal Inch) | 2.00 |
| Cylinder Bore Diameter (Decimal Inch) | 2.88 |
| Lowered Height | 6.38 |
| Oil Capacity | 9.46 |
| Effective Area | 4.73 |
| Maximum Height (Decimal Inch) | 8.38 |
| Outside Diameter (Inch) | 3-7/8 |
| Plunger Diameter | 2.13 |
| Base To Inlet Port (Inch) | 3/4 |
| Saddle Diameter (Inch) | 2.13 |
| Plunger Internal Thread Size | 1-9/16 - 16 |
| Plunger Internal Thread Length | 0.75 |
| Collar Thread | 3-7/8 - 12 |
| Collar Thread Length (Inch) | 1.50 |
| Y Center Hole Diameter | 1.06 |
| Base Mounting Holes Bolt Circle (Inch) | 3-1/4 |
| Two Base Mounting Holes Thread Size | 3/8 - 16 |
| Base Mounting Hole Thread Depth (Inch) | 0.37 |
| Maximum Pressure (psi) | 10000 |
