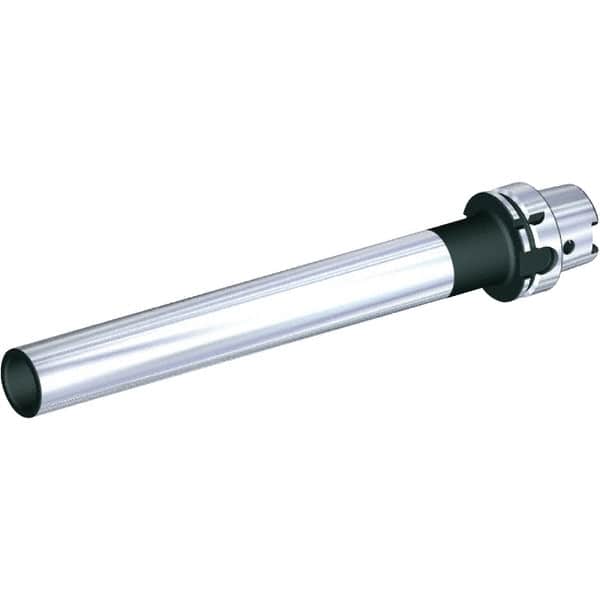

Kennametal - 1.57 Inch Nose Diameter, HSK100A Tool Holder Gage Bar - 15.71 Inch Long, 13.74 Inch Projection, 11.81 Inch Test Length
Item #: 80069008
Brand: Kennametal
Model #: 1316356
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Size | HSK100A |
| Nose Diameter (mm) | 39.88 |
| Nose Diameter (Decimal Inch) | 1.5700 |
| Projection (Decimal Inch) | 13.7400 |
| Projection (mm) | 349 |
| Test Length (mm) | 299.97 |
| Test Length (Decimal Inch) | 11.8100 |
| Overall Length (mm) | 399.03 |
| Overall Length (Decimal Inch) | 15.7100 |
