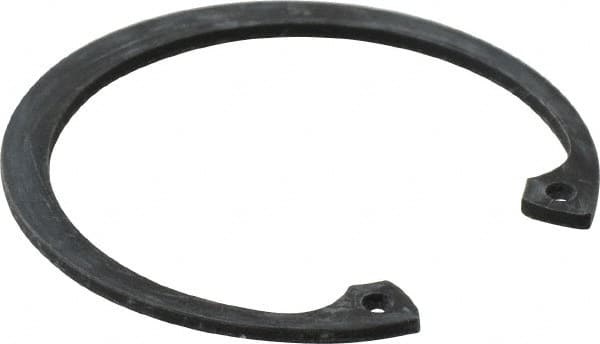

Value Collection - 1-11/16" Nominal, 0.062" Thick, Phosphate Finish, Spring Steel Snap Internal Retaining Ring - 0.068" Groove Width, 0.052" Groove Depth, 1.792" Groove Diam
Item #: 80122351
Brand: Value Collection
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Snap |
| Material | Spring Steel |
| System of Measurement | Inch |
| Bore Diameter (Inch) | 1-11/16 |
| Nominal Size (Inch) | 1-11/16 |
| Groove Diameter (Decimal Inch) | 1.7920 |
| Groove Width (Decimal Inch) | 0.0680 |
| Free Outside Diameter (Decimal Inch) | 1.8740 |
| Ring Thickness (Decimal Inch) | 0.0620 |
| Finish/Coating | Phosphate |
| Groove Depth (Decimal Inch) | 0.0520 |
| Groove Diameter Tolerance (Decimal Inch) | -0.0050 to 0.0050 |
| Groove Width Tolerance (Decimal Inch) | 0.000 to 0.004 |
| Free Outside Diameter Tolerance (Decimal Inch) | -0.025 to 0.035 |
| Ring Thickness Tolerance (Decimal Inch) | -0.003 to 0.003 |
