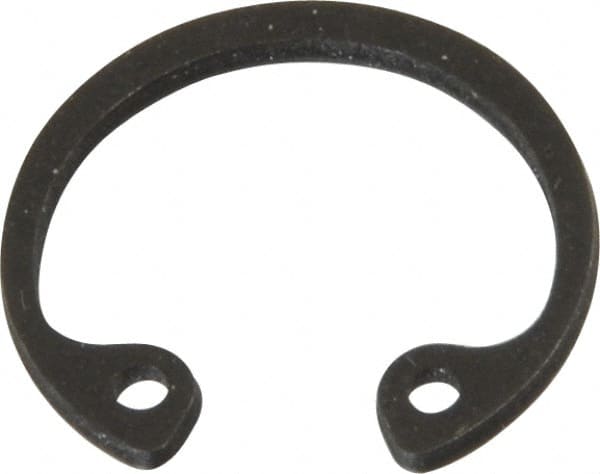

Value Collection - 1/2" Nominal, 0.035" Thick, Phosphate Finish, Spring Steel Snap Internal Retaining Ring - 0.039" Groove Width, 0.015" Groove Depth, 0.53" Groove Diam
Item #: 80122468
Brand: Value Collection
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Snap |
| Material | Spring Steel |
| System of Measurement | Inch |
| Bore Diameter (Inch) | 1/2 |
| Nominal Size (Inch) | 1/2 |
| Groove Diameter (Decimal Inch) | 0.5300 |
| Groove Width (Decimal Inch) | 0.0390 |
| Free Outside Diameter (Decimal Inch) | 0.5480 |
| Ring Thickness (Decimal Inch) | 0.0350 |
| Finish/Coating | Phosphate |
| Groove Depth (Decimal Inch) | 0.0150 |
| Groove Diameter Tolerance (Decimal Inch) | -0.0020 to 0.0040 |
| Groove Width Tolerance (Decimal Inch) | 0.000 to 0.003 |
| Free Outside Diameter Tolerance (Decimal Inch) | -0.005 to 0.010 |
| Ring Thickness Tolerance (Decimal Inch) | -0.002 to 0.002 |
