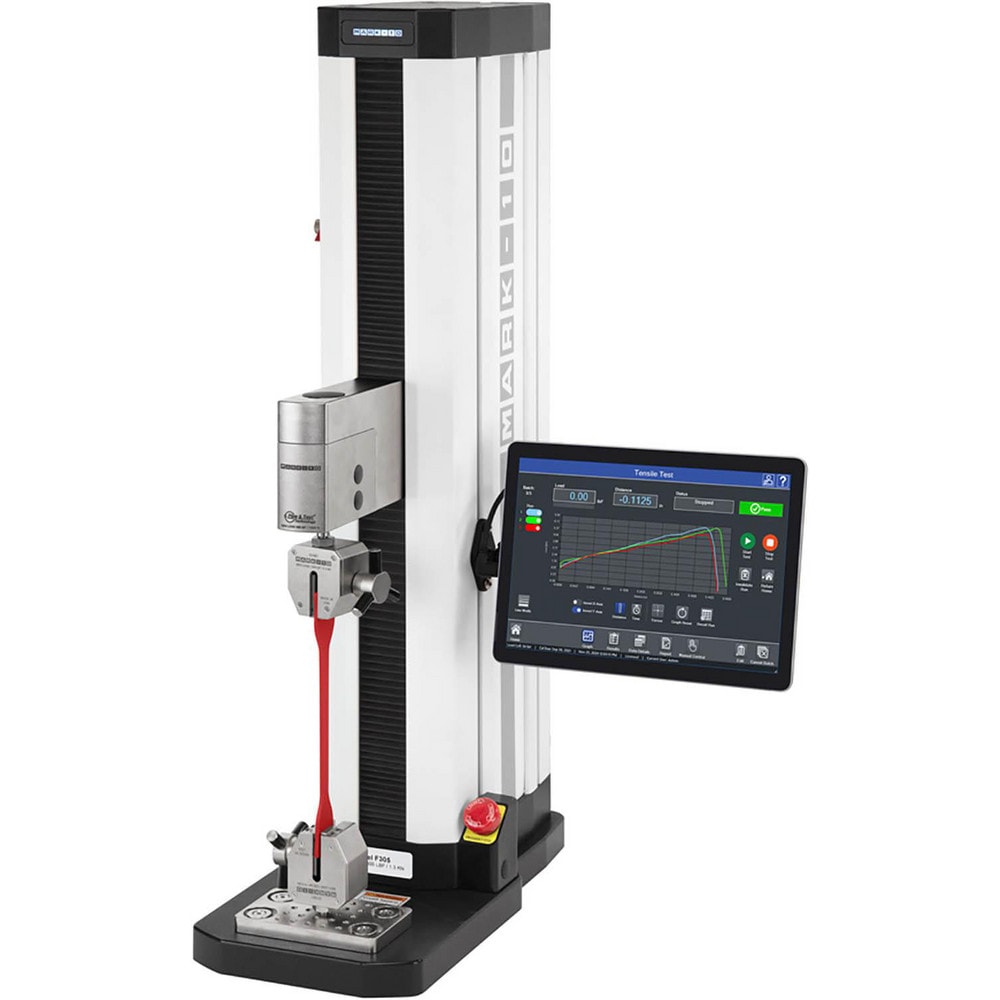

Tension & Compression Force Gage Accessories; Type: Test Frame with Pre-Loaded Control Panel; Power Source: AC, Battery
Item #: 64290935
Brand: Mark-10
Model #: F505-IMT
Product Specifications
| Type | Test Frame with Pre-Loaded Control Panel |
| Power Source | AC; Battery |
| For Use With | Series FS05 Force Sensors |
| Resolution (Decimal Inch) | 0.0001 |
| Resolution (mm) | 0.01 |
| Capacity (Lb.) | 500.00 |
| Includes | (1) #10-32F 2? Diameter Compression Plate; (1) Allen Wrench Set; (1) Mounting Bracket, Column End (F505H Only); (2) Hex Nut, #10-32; (1) USB Cable; (1) #10-32M Medium Hook; (1) Power Cord; (1) #10-32 F/F Coupler; (1) Set Screw, #10-32 X 3/4?; (1) Control Panel, Mounting Bracket, And Hardware; (1) 5/16-18M Large Hook; (1) Adapter, 5/16-18M To #10-32F |
| Battery Type | None |
| UNSPSC Code | 41111900 |
| Type | Test Frame with Pre-Loaded Control Panel |
| Power Source | AC; Battery |
| For Use With | Series FS05 Force Sensors |
| Resolution (Decimal Inch) | 0.0001 |
| Resolution (mm) | 0.01 |
| Capacity (Lb.) | 500.00 |
| Includes | (1) #10-32F 2? Diameter Compression Plate; (1) Allen Wrench Set; (1) Mounting Bracket, Column End (F505H Only); (2) Hex Nut, #10-32; (1) USB Cable; (1) #10-32M Medium Hook; (1) Power Cord; (1) #10-32 F/F Coupler; (1) Set Screw, #10-32 X 3/4?; (1) Control Panel, Mounting Bracket, And Hardware; (1) 5/16-18M Large Hook; (1) Adapter, 5/16-18M To #10-32F |
| Battery Type | None |
| UNSPSC Code | 41111900 |
| MSC Part # | 64290935 |
| Mfr Part # | F505-IMT |
| Country of Origin Country of Origin is subject to change | UNITED STATES |
