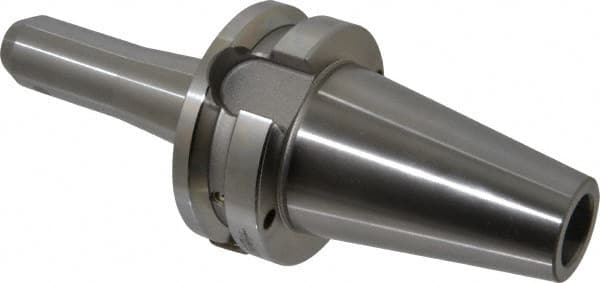

Accupro - BT40 Taper Shank 1/4" Hole End Mill Holder/Adapter - 20mm Nose Diam, 4" Projection, M16x2.0 Drawbar, Through-Spindle & DIN Flange Coolant
Item #: 80264732
Brand: Accupro
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | BT40 |
| Hole Diameter (Inch) | 1/4 |
| Nose Diameter (mm) | 20.00 |
| Projection (Decimal Inch) | 4.0000 |
| Through Coolant | Yes |
| Balanced to (RPM) | 30000 |
| TIR (Decimal Inch) | 0.0002 |
| Coolant Type | Through-Spindle & DIN Flange |
| Drawbar Thread Size | M16x2.0 |
