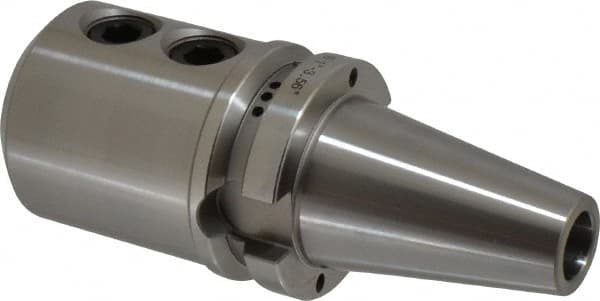

Accupro - BT40 Taper Shank 1" Hole End Mill Holder/Adapter - 2-23/64" Nose Diam, 3.56" Projection, M16x2.0 Drawbar, Through-Spindle & DIN Flange Coolant
Item #: 80264971
Brand: Accupro
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | BT40 |
| Hole Diameter (Inch) | 1 |
| Nose Diameter (Inch) | 2-23/64 |
| Projection (Decimal Inch) | 3.5600 |
| Through Coolant | Yes |
| Balanced to (RPM) | 30000 |
| TIR (Decimal Inch) | 0.0002 |
| Coolant Type | Through-Spindle & DIN Flange |
| Drawbar Thread Size | M16x2.0 |
