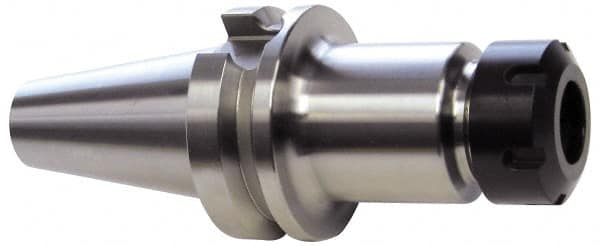

Accupro - 0.039" to 0.629" Capacity, 2" Projection, BT30 Taper Shank, ER25 Collet Chuck - 0.0002" TIR, Through-Spindle
Item #: 80265689
Brand: Accupro
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | ER |
| Collet Series | ER25 |
| Shank Type | Taper Shank |
| Taper Size | BT30 |
| Projection (Decimal Inch) | 2.0000 |
| Through Coolant | Yes |
| Minimum Collet Capacity (Decimal Inch) | 0.0390 |
| Maximum Collet Capacity (Decimal Inch) | 0.6290 |
| PSC Code | 5136 |
| Balanced to (RPM) | 20000 |
| TIR (Decimal Inch) | 0.0002 |
| Coolant Type | Through-Spindle |
| Collet Nut Diameter (Decimal Inch) | 1.6500 |
