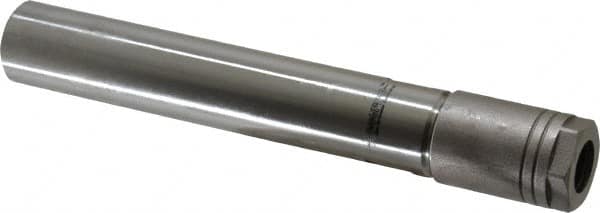

Accupro - 3/64" to 9/16" Capacity, 1.658" Projection, Straight Shank, DA100 Collet Chuck - 7.5" OAL, 1" Shank Diam
Item #: 80266083
Brand: Accupro
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | Double Angle |
| Collet Series | DA100 |
| Shank Type | Straight Shank |
| Shank Diameter (Inch) | 1 |
| Projection (Decimal Inch) | 1.6580 |
| Through Coolant | No |
| Minimum Collet Capacity (Inch) | 3/64 |
| Maximum Collet Capacity (Inch) | 9/16 |
| Overall Length (Decimal Inch) | 7.5000 |
| Head Length (Inch) | 1-21/32 |
| PSC Code | 5136 |
| Coolant Type | Through-Spindle |
| Collet Nut Diameter (Decimal Inch) | 1.0600 |
