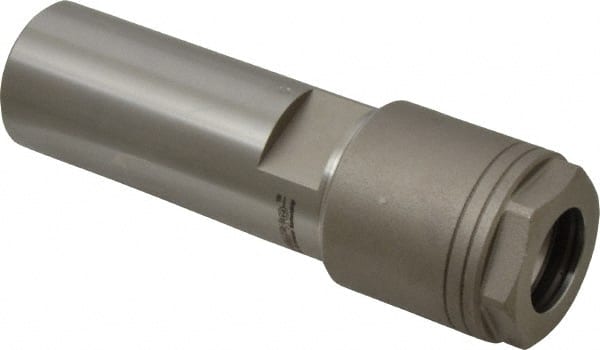

Accupro - 3/64" to 3/4" Capacity, 1.83" Projection, Straight Shank, DA180 Collet Chuck - 5" OAL, 1-1/4" Shank Diam
Item #: 80266091
Brand: Accupro
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | Double Angle |
| Collet Series | DA180 |
| Shank Type | Straight Shank |
| Shank Diameter (Inch) | 1-1/4 |
| Projection (Decimal Inch) | 1.8300 |
| Through Coolant | No |
| Minimum Collet Capacity (Inch) | 3/64 |
| Maximum Collet Capacity (Inch) | 3/4 |
| Maximum Collet Capacity (Decimal Inch) | 0.7500 |
| Overall Length (Decimal Inch) | 5.0000 |
| Head Length (Inch) | 1-53/64 |
| PSC Code | 5136 |
| Coolant Type | Through-Spindle |
| Collet Nut Diameter (Decimal Inch) | 1.4400 |
