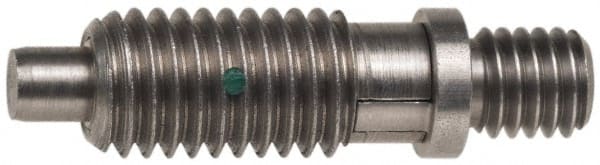

Gibraltar - 3/8-16, 3/4" Thread Length, 0.186" Max Plunger Diam, 1.5 Lb Init to 8 Lb Final End Force, Locking Knob Handle Plunger - Knobless Threaded Stud, 31/32" Length Under Head/Shoulder, 7/32" Plunger Projection
Item #: 80380454
Brand: Gibraltar
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Size | 3/8-16 |
| Thread Length (Inch) | 3/4 |
| Thread Length (Decimal Inch) | 0.7500 |
| Plunger Type | Locking |
| Knob Style | Threaded Stud (without Knob) |
| Length Under Head/Shoulder (Inch) | 31/32 |
| Length Under Head/Shoulder (Decimal Inch) | 0.9688 |
| Plunger Projection (Inch) | 7/32 |
| Plunger Projection (Decimal Inch) | 0.2188 |
| Maximum Plunger Diameter (Decimal Inch) | 0.1860 |
| Initial End Force (Lb.) | 1.50 |
| Final End Force (Lb.) | 8.00 |
| Locking Element | Yes |
| Plunger Length (Decimal Inch) | 1.6910 |
| Head Height (Inch) | 13/32 |
| Stud Thread Size | 5/16-18 |
| Material | Stainless Steel |
| Finish/Coating | Zinc Plated |
| Plunger Diameter Tolerance (Decimal Inch) | +0.0010 |
