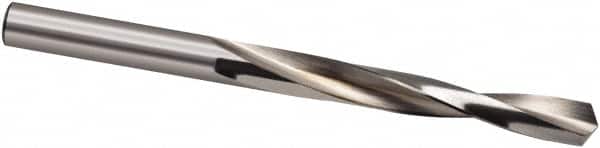

Jobber Length Drill Bit: 0.0996″ Dia, 118 °, High Speed Steel Bright/Uncoated, Right Hand Cut, Spiral Flute
Item #: 80410368
Brand: Guhring
Model #: 9002060025300
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.0996 |
| Drill Bit Size (Wire) | #39 |
| Drill Bit Material | High Speed Steel |
| Cutting Direction | Right Hand |
| Drill Bit Finish/Coating | Bright |
| Drill Point Angle (Degrees) | 118 |
| Spiral Type | Slow |
| Flute Type | Spiral |
| Point Type | Cone Relief |
| Coolant Through | No |
| Number of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.0996 |
| Overall Length (mm) | 57.00 |
| Flute Length (mm) | 30.00 |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (mm) | 2.53 |
| Web Thinning | Web-Thinned |
| Drill Bit Grade | General Purpose |
| Drill Bit Size Range (Decimal Inch) | 0.0500 - 0.1000 |
| Specification Designation | DIN |
