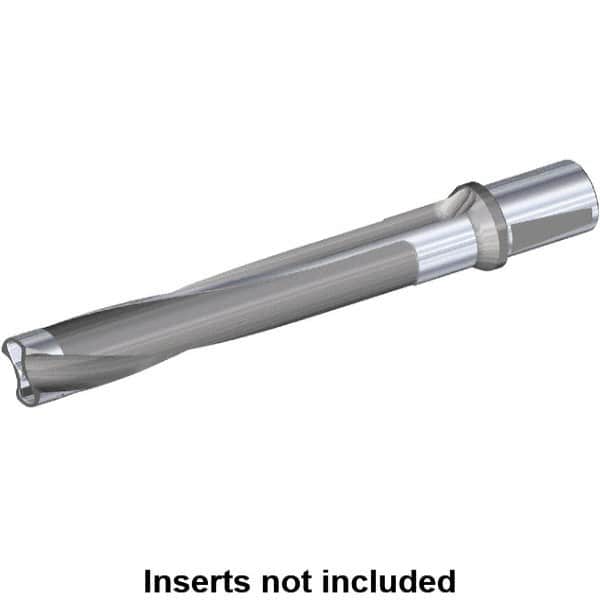

Kennametal - Series KSEM Plus, Head Connection FDS45, 3xD, 50mm Shank Diam, Drill Body - 206mm Drill Body Length to Flange, WD Toolholder, 274mm OAL, 206mm Drill Body Length, 122mm Flute Length, Whistle Notch Shank, Through Coolant
Item #: 80428956
Brand: Kennametal
Model #: 3872079
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | KSEM Plus |
| Head Connection Size | FDS45 |
| Drill Depth by Diameter Ratio | 3xD |
| Shank Diameter (mm) | 50.00 |
| Shank Diameter (Decimal Inch) | 1.9685 |
| Drill Body Length to Flange (mm) | 206.00 |
| Drill Body Length to Flange (Decimal Inch) | 8.1102 |
| Toolholder Style | WD |
| Overall Length (mm) | 274.00 |
| Overall Length (Decimal Inch) | 10.7874 |
| Gage Length (mm) | 206.00 |
| Gage Length (Decimal Inch) | 8.1102 |
| Flute Length (mm) | 122.00 |
| Flute Length (Decimal Inch) | 4.8031 |
| Shank Type | Whistle Notch |
| Shank Length (mm) | 68.00 |
| Shank Length (Decimal Inch) | 2.6772 |
| Through Coolant | Through Coolant |
| Includes | Clamping Screws; Wrench |
