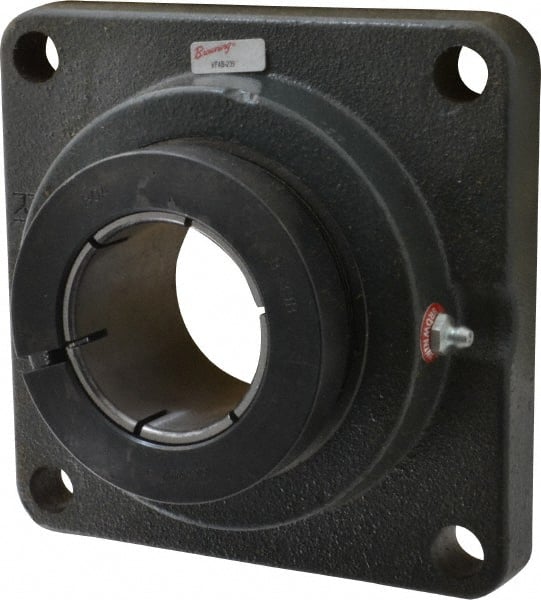

Browning - 2-7/16" ID, 6-7/8" OAL x 6-7/8" OAH 4-Bolt Flange - 8,150 Lb Static Cap, 11,789 Lb Dyn Cap, 5-5/8" Btw Mnt Hole Ctrs, Cast Iron
Item #: 80463771
Brand: Browning
Model #: VF4B-239
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | 4-Bolt Flange |
| Inside Diameter (Inch) | 2-7/16 |
| Width (Inch) | 2-3/4 |
| Overall Length (Inch) | 6-7/8 |
| Overall Height (Inch) | 6-7/8 |
| Static Load Capacity (Pounds) | 8150.00 |
| Dynamic Load Capacity (Pounds) | 11789 |
| Distance Between Mounting Hole Centers (Decimal Inch) | 5.6250 |
| Distance Between Mounting Hole Centers (Inch) | 5-5/8 |
| Material | Cast Iron |
| Insert Material | 52100 Steel |
| Lock Type | Concentric |
| Bolt Size (Inch) | 5/8 |
