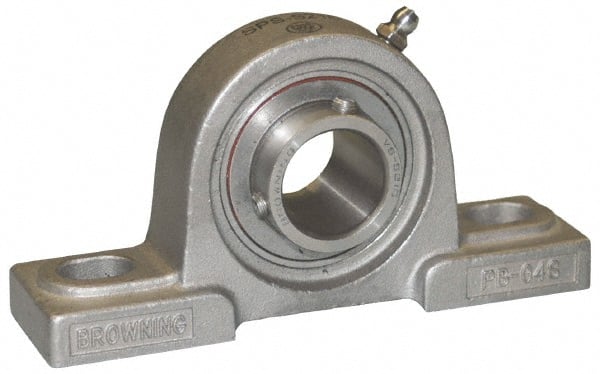

Browning - 1-1/2" ID, 7-15/64" OAL x 3-15/16" OAH Pillow Block - 4,467 Lb Static Cap, 7,340 Lb Dyn Cap, 5-25/64" Btw Mnt Hole Ctrs, 1-15/16" Base-to-Ctr Ht, Stainless Steel
Item #: 80471360
Brand: Browning
Model #: SPS-S224
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Pillow Block |
| Inside Diameter (Inch) | 1-1/2 |
| Width (Inch) | 2-1/16 |
| Overall Length (Inch) | 7-15/64 |
| Overall Height (Inch) | 3-15/16 |
| Static Load Capacity (Pounds) | 4467.00 |
| Dynamic Load Capacity (Pounds) | 7340 |
| Distance Between Mounting Hole Centers (Decimal Inch) | 5.3910 |
| Distance Between Mounting Hole Centers (Inch) | 5-25/64 |
| Material | Stainless Steel |
| Distance Between Base And Center (Decimal Inch) | 1.9380 |
| Distance Between Base And Center (Inch) | 1-15/16 |
| Insert Material | Stainless Steel |
| Lock Type | Set Screw |
| Bolt Size (Inch) | 1/2 |
