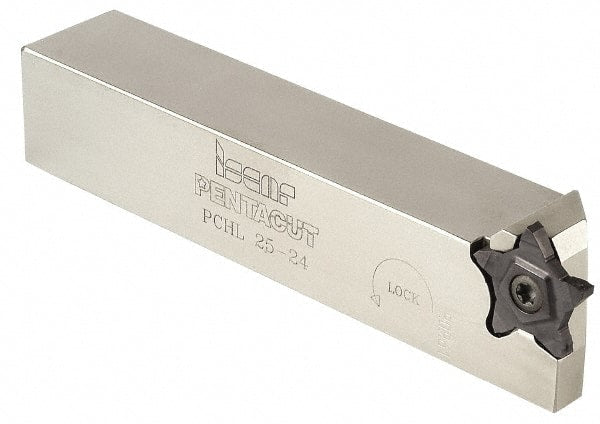

Iscar - 0.256" Max Depth of Cut, 0.031" Min Groove Width, 4.7" OAL, Right Hand Indexable Grooving Cutoff Toolholder - 3/4" Shank Height x 3/4" Shank Width, PENTA 24... Insert Style, PCH Toolholder Style, Series PentaCut
Item #: 80691751
Brand: Iscar
Model #: 2394823
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.2560 |
| Minimum Groove Width (Decimal Inch) | 0.0310 |
| Maximum Groove Width (Decimal Inch) | 0.1890 |
| Overall Length (Decimal Inch) | 4.7000 |
| Series | PentaCut |
| Toolholder Style | PCH |
| Insert Compatibility | PENTA 24... |
| Shank Height (Decimal Inch) | 0.7500 |
| Shank Width/Diameter (Decimal Inch) | 0.7500 |
| Through Coolant | NonThrough Coolant |
| Insert Holding Method | Screw |
| Full Radius Insert | No |
| Head Height (Decimal Inch) | 0.9500 |
| Head Length (Decimal Inch) | 0.7700 |
