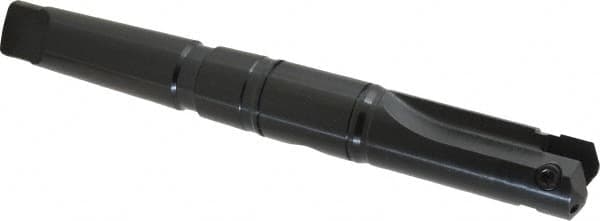

Allied Machine and Engineering - Series B, 1-1/4 to 1-3/4" Diam, 4MT Taper Shank, Straight Flute Spade Drill - 3-1/2" Max Depth, 6-1/32" Body Length, 10-1/16" OAL, Short Length, Through Coolant
Item #: 80741200
Brand: Allied Machine and Engineering
Model #: 21621-0004
Exact Tooling IR#: 04
Features and Benefits
Straight flutes are used for horizontal machining center applications.
| Product Specifications | |
|---|---|
| Series | B |
| Minimum Drill Diameter (Inch) | 1-1/4 |
| Maximum Drill Diameter (Inch) | 1-3/4 |
| Shank Type | Taper Shank |
| Shank Taper Size | 4MT |
| Spade Drill Length | Short Length |
| Overall Length (Inch) | 10-1/16 |
| Maximum Drill Depth (Inch) | 3-1/2 |
| Flute Type | Straight Flute |
| Flute Length (Inch) | 3-1/2 |
| Body Length (Inch) | 6-1/32 |
| Shank Length (Inch) | 4-7/8 |
| Through Coolant | Yes |
| Rotary Coolant Adapter Compatibility | 2T-4SR |
| Coolant Hole Thread Type | NPT |
| Body Side Coolant Hole Thread Size (Inch) | 1/4 |
| Shank End Coolant Hole Thread Size (Inch) | 1/4 |
