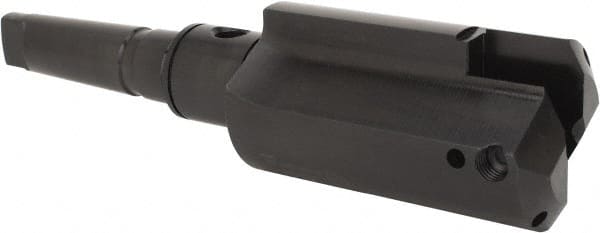

Allied Machine and Engineering - Series H, 4 to 8-1/2" Diam, 5MT Taper Shank, Straight Flute Spade Drill - 7" Max Depth, 11-1/8" Body Length, 15-7/16" OAL, Short Length, Through Coolant
Item #: 80741804
Brand: Allied Machine and Engineering
Model #: 21681-0005
Exact Tooling IR#: 04
Features and Benefits
Straight flutes are used for horizontal machining center applications.
| Product Specifications | |
|---|---|
| Series | H |
| Minimum Drill Diameter (Inch) | 4 |
| Maximum Drill Diameter (Inch) | 8-1/2 |
| Shank Type | Taper Shank |
| Shank Taper Size | 5MT |
| Spade Drill Length | Short Length |
| Overall Length (Inch) | 15-7/16 |
| Maximum Drill Depth (Inch) | 7 |
| Flute Type | Straight Flute |
| Flute Length (Inch) | 7 |
| Body Length (Inch) | 11-1/8 |
| Shank Length (Inch) | 6-1/8 |
| Through Coolant | Yes |
| Rotary Coolant Adapter Compatibility | 2T-6SR |
| Coolant Hole Thread Type | NPT |
| Body Side Coolant Hole Thread Size (Inch) | 1/2 |
| Shank End Coolant Hole Thread Size (Inch) | 1/2 |
