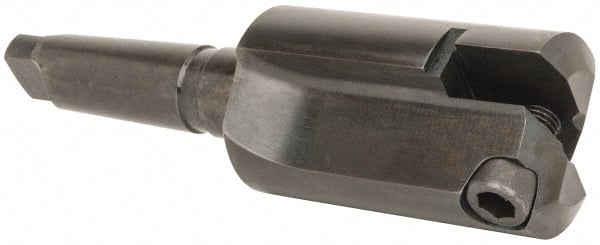

Allied Machine and Engineering - Series G, 3-1/2 to 4-1/2" Diam, 5MT Taper Shank, Straight Flute Spade Drill - 6" Max Depth, 7-11/16" Body Length, 12-1/8" OAL, Short Length
Item #: 80742703
Brand: Allied Machine and Engineering
Model #: 21471-0005
Exact Tooling IR#: 04
Features and Benefits
Straight flutes are used for horizontal machining center applications.
| Product Specifications | |
|---|---|
| Series | G |
| Minimum Drill Diameter (Inch) | 3-1/2 |
| Maximum Drill Diameter (Inch) | 4-1/2 |
| Shank Type | Taper Shank |
| Shank Taper Size | 5MT |
| Spade Drill Length | Short Length |
| Overall Length (Inch) | 12-1/8 |
| Maximum Drill Depth (Inch) | 6 |
| Flute Type | Straight Flute |
| Flute Length (Inch) | 6 |
| Body Length (Inch) | 7-11/16 |
| Shank Length (Inch) | 6-1/8 |
| Through Coolant | No |
