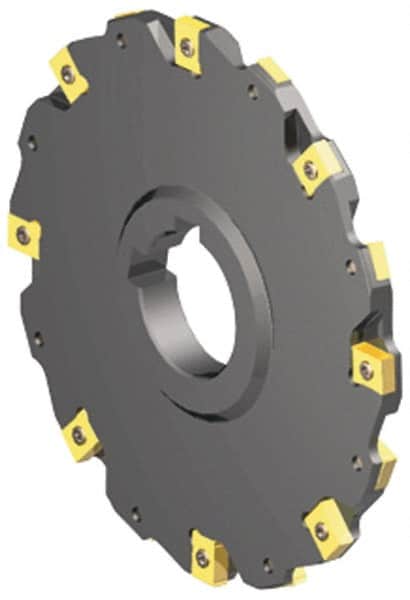

Kennametal - Arbor Hole Connection, 5/16" Cutting Width, 0.935" Depth of Cut, 4" Cutter Diam, 1-1/4" Hole Diam, 10 Tooth Indexable Slotting Cutter - 90° LN Toolholder, LNE 1245... Insert
Item #: 80744451
Brand: Kennametal
Model #: 1025964
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor Hole |
| Cutting Width (Decimal Inch) | 0.3120 |
| Maximum Depth of Cut (Decimal Inch) | 0.9350 |
| Cutter Diameter (Decimal Inch) | 4.0000 |
| Cutter Diameter (Inch) | 4 |
| Hole Diameter (Inch) | 1-1/4 |
| Hole Diameter (Decimal Inch) | 1.2500 |
| Number of Teeth | 10 |
| Toolholder Style | 90 LN |
| Series | LN |
| Insert Style | LNE 1245... |
| Staggered Tooth | Yes |
| Number of Cutter Inserts | 10 |
| Insert Holding Method | Screw |
| Maximum RPM | 7400 |
| Minimum Cutting Width (Decimal Inch) | 0.3120 |
| Hub Diameter (Decimal Inch) | 1.8800 |
| Keyway Width (Decimal Inch) | 0.3100 |
| Radius | No |
| Rake | Neutral; Positive |
| Cutter Body Width (Decimal Inch) | 0.5000 |
| Complete Insert Compatibility2 | LNEU 1245R16; LNEU 1245R32 |
| Complete Insert Compatibility1 | LNEQ 1245R04; LNEU 1245R08 |
