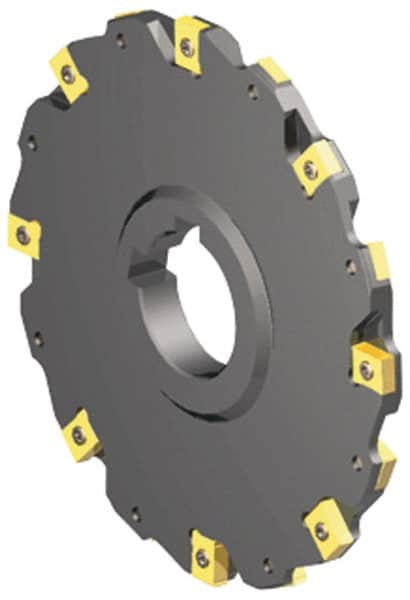

Kennametal - Arbor Hole Connection, 0.161" Cutting Width, 1.12" Depth of Cut, 4" Cutter Diam, 1" Hole Diam, 12 Tooth Indexable Slotting Cutter - 90° SN Toolholder, SNHX Insert
Item #: 80744493
Brand: Kennametal
Model #: 1247681
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor Hole |
| Cutting Width (Decimal Inch) | 0.1610 |
| Maximum Depth of Cut (Decimal Inch) | 1.1200 |
| Cutter Diameter (Decimal Inch) | 4.0000 |
| Cutter Diameter (Inch) | 4 |
| Hole Diameter (Inch) | 1 |
| Hole Diameter (Decimal Inch) | 1.0000 |
| Number of Teeth | 12 |
| Toolholder Style | 90 SN |
| Series | SN |
| Insert Style | SNHX |
| Staggered Tooth | Yes |
| Number of Cutter Inserts | 12 |
| Insert Holding Method | Screw |
| Maximum RPM | 9530 |
| Minimum Cutting Width (Decimal Inch) | 0.1610 |
| Hub Diameter (Decimal Inch) | 1.6200 |
| Keyway Width (Decimal Inch) | 0.2700 |
| Radius | No |
| Cutter Body Width (Decimal Inch) | 0.5000 |
| Complete Insert Compatibility1 | SNHX 1102PZFNGE; SNHX 1102PZTNGP; SNHX 1102T; SNHX 1103T; SNHX 11T3PZFNGE; SNHX 11T3PZTNGP; SNHX 1203PZFNGE; SNHX 1203PZTNGP; SNHX 1203T; SNHX 12045T; SNHX 1204T; SNHX 1205T; SNHX 12L4PZTNGP; SNHX 12L5PZFNGE; SNHX 12L5PZTNGP |
