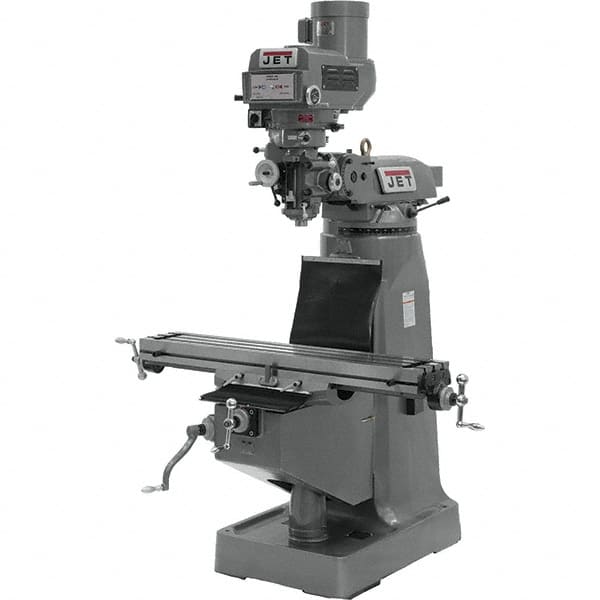

Jet - 9" Table Width x 42" Table Length, Variable Speed Pulley Control, 3 Phase Knee Milling Machine - R8 Spindle Taper, 3 hp - Exact Tooling

Jet - 9" Table Width x 42" Table Length, Variable Speed Pulley Control, 3 Phase Knee Milling Machine - R8 Spindle Taper, 3 hp


Item #: 80869878
Brand: Jet
Model #: 690400
Exact Tooling IR#: 04

Features and Benefits

Variable speed pulleys are driven by a V-shaped belt system and a variable speed assembly that regulates an infinite speed range change by the turn of a dial.
Three-phase refers to three individual lines (coils) that connect to and run voltage through the motor. Each line alternates in a sequence as they reach their voltage peak. They provide a more stable flow of voltage and more horsepower to the equipment.
Product Specifications
Spindle Speed Control Variable Speed Pulley
Table Length (Inch) 42
Table Width (Inch) 9
Phase 3
Longitudinal Travel (Decimal Inch) 34.0000
Cross Travel (Decimal Inch) 12.0000
Knee Travel (Decimal Inch) 16.0000
Number of Spindle Speeds Variable
Maximum Spindle Speed (RPM) 4200.00
Minimum Spindle Speed (RPM) 60.00
Spindle Travel Length (Inch) 4-1/2
Spindle Taper Size R8
Quill Diameter (Inch) 3-3/8
Quill Diameter (Decimal Inch) 3.3750
Maximum Spindle To Column Distance (Decimal Inch) 4.5000
Table Load Capacity (Lb.) 660.00
Number of T-Slots 2
Left-Hand Head Tilt (Degrees) 90.00
Right-Hand Head Tilt (Degrees) 90.00
Forward Head Tilt (Degrees) 45.00
Backward Head Tilt (Degrees) 45.00
Ram Travel Length (Inch) 13-3/8
Horsepower (HP) 3.00
Voltage 230
Overall Length (Decimal Inch) 63.0000
Overall Height (Inch) 85
Overall Height (Decimal Inch) 85.0000
Overall Depth (Decimal Inch) 65.5000
$ 17,819.01
