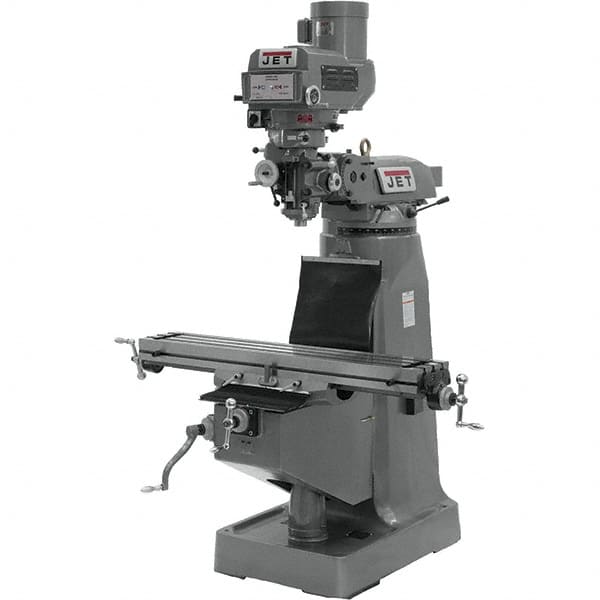

Jet - 9" Table Width x 42" Table Length, Variable Speed Pulley Control, 3 Phase Knee Milling Machine - R8 Spindle Taper, 3 hp
Item #: 80870082
Brand: Jet
Model #: 690202
Exact Tooling IR#: 04
Features and Benefits
Variable speed pulleys are driven by a V-shaped belt system and a variable speed assembly that regulates an infinite speed range change by the turn of a dial.
Three-phase refers to three individual lines (coils) that connect to and run voltage through the motor. Each line alternates in a sequence as they reach their voltage peak. They provide a more stable flow of voltage and more horsepower to the equipment.
| Product Specifications | |
|---|---|
| Spindle Speed Control | Variable Speed Pulley |
| Table Length (Inch) | 42 |
| Table Width (Inch) | 9 |
| Phase | 3 |
| Longitudinal Travel (Decimal Inch) | 34.0000 |
| Cross Travel (Decimal Inch) | 12.0000 |
| Knee Travel (Decimal Inch) | 16.0000 |
| Number of Spindle Speeds | Variable |
| Maximum Spindle Speed (RPM) | 4200.00 |
| Minimum Spindle Speed (RPM) | 60.00 |
| Spindle Travel Length (Inch) | 4-1/2 |
| Spindle Taper Size | R8 |
| Quill Diameter (Inch) | 3-3/8 |
| Quill Diameter (Decimal Inch) | 3.3750 |
| Maximum Spindle To Column Distance (Decimal Inch) | 4.5000 |
| Table Load Capacity (Lb.) | 660.00 |
| Number of T-Slots | 2 |
| Left-Hand Head Tilt (Degrees) | 90.00 |
| Right-Hand Head Tilt (Degrees) | 90.00 |
| Forward Head Tilt (Degrees) | 45.00 |
| Backward Head Tilt (Degrees) | 45.00 |
| Ram Travel Length (Inch) | 14-1/2 |
| Horsepower (HP) | 3.00 |
| Voltage | 230/460 |
| Overall Length (Decimal Inch) | 66.0000 |
| Overall Height (Inch) | 72 |
| Overall Depth (Decimal Inch) | 56.0000 |
