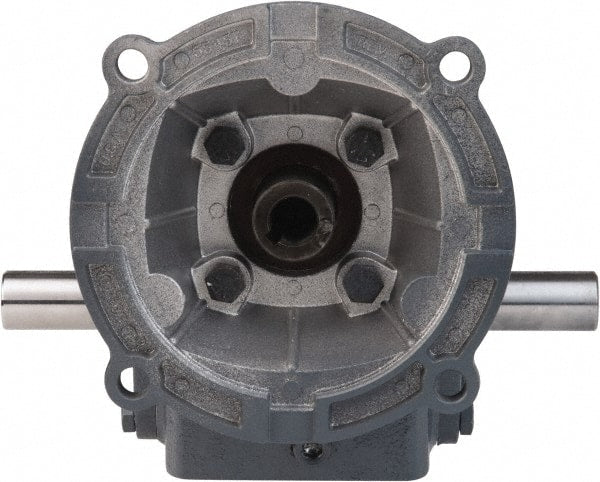

Boston Gear - 1 Centerline Distance, 5:1, 350 RPM Output, 0.69 Input Horsepower, 113 Lbs. Max Torque, Speed Reducer - Part No. F710-5-B5-H, Double Shaft Left & Right, 5/8" Bore, 2.31" High, 56C NEMA
Item #: 80899479
Brand: Boston Gear
Model #: 59827
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Centerline Distance (Decimal Inch) | 1.000 |
| Ratio | 5:1 |
| NEMA Size | 56C |
| PartNo | F710-5-B5-H |
| Shaft Style | Double Shaft Left/Right |
| Bore Size (Decimal Inch) | 0.625 |
| Height (Inch) | 2.31 |
| Maximum Torque Inch/Lbs (Pounds) | 113.00 |
| Maximum Input Horsepower | 0.69 |
| Output RPM at 1750 Input | 350.0 |
