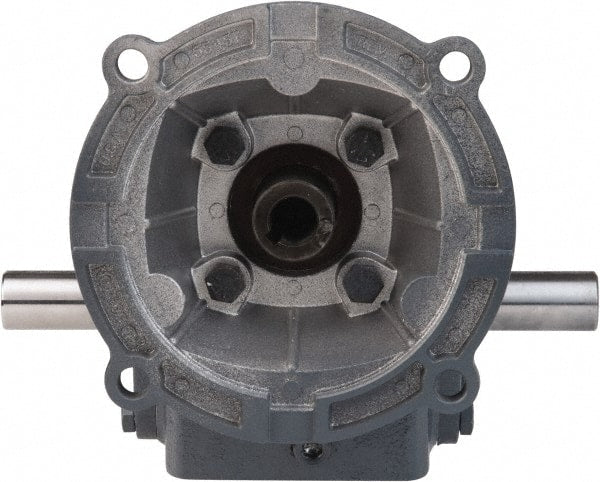

Boston Gear - 6 Centerline Distance, 40:1, 44 RPM Output, 9.56 Input Horsepower, 11,197 Lbs. Max Torque, Speed Reducer - Part No. RF760-40-B11-H, Double Shaft Left & Right, 1-3/8" Bore, 12-1/2" High, 210TC NEMA
Item #: 80899636
Brand: Boston Gear
Model #: 52855
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Centerline Distance (Decimal Inch) | 6.000 |
| Ratio | 40:1 |
| NEMA Size | 210TC |
| PartNo | RF760-40-B11-H |
| Shaft Style | Double Shaft Left/Right |
| Bore Size (Decimal Inch) | 1.3750 |
| Height (Inch) | 12.5 |
| Maximum Torque Inch/Lbs (Pounds) | 11197.00 |
| Maximum Input Horsepower | 9.56 |
| Output RPM at 1750 Input | 44.0 |
