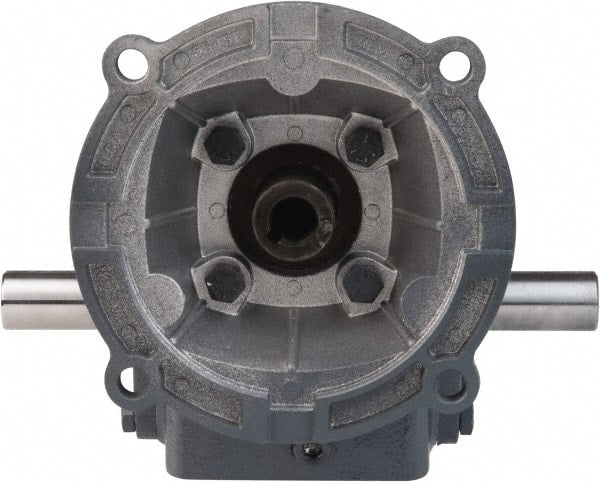

Boston Gear - 3-1/4 Centerline Distance, 60:1, 29 RPM Output, 1-3/4 Input Horsepower, 2,549 Lbs. Max Torque, Speed Reducer - Part No. F732-60-B7-H, Double Shaft Left & Right, 7/8" Bore, 6-3/4" High, 140TC NEMA
Item #: 80899909
Brand: Boston Gear
Model #: 52084
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Centerline Distance (Decimal Inch) | 3.250 |
| Ratio | 60:1 |
| NEMA Size | 140TC |
| PartNo | F732-60-B7-H |
| Shaft Style | Double Shaft Left/Right |
| Bore Size (Decimal Inch) | 0.875 |
| Height (Inch) | 6.75 |
| Maximum Torque Inch/Lbs (Pounds) | 2549.00 |
| Maximum Input Horsepower | 1.75 |
| Output RPM at 1750 Input | 29.0 |
