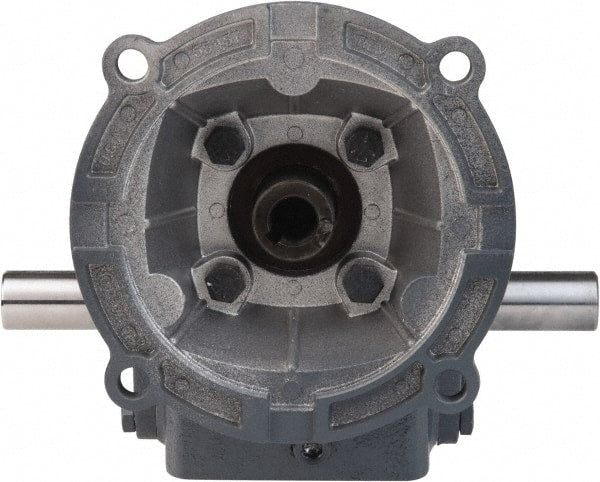

Boston Gear - 2.62 Centerline Distance, 20:1, 88 RPM Output, 2.34 Input Horsepower, 1,483 Lbs. Max Torque, Speed Reducer - Part No. F726-20-B7-H, Double Shaft Left & Right, 7/8" Bore, 5.56" High, 140TC NEMA
Item #: 80900053
Brand: Boston Gear
Model #: 52030
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Centerline Distance (Decimal Inch) | 2.620 |
| Ratio | 20:1 |
| NEMA Size | 140TC |
| PartNo | F726-20-B7-H |
| Shaft Style | Double Shaft Left/Right |
| Bore Size (Decimal Inch) | 0.875 |
| Height (Inch) | 5.56 |
| Maximum Torque Inch/Lbs (Pounds) | 1483.00 |
| Maximum Input Horsepower | 2.34 |
| Output RPM at 1750 Input | 88.0 |
