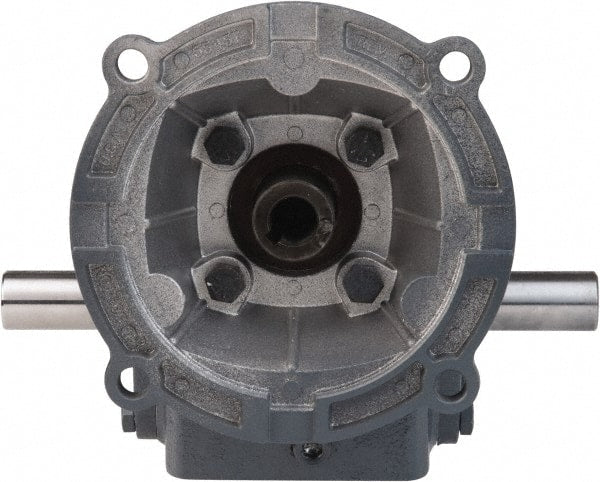

Boston Gear - 2.06 Centerline Distance, 20:1, 88 RPM Output, 1.4 Input Horsepower, 892 Lbs. Max Torque, Speed Reducer - Part No. F721-20-B5-H, Double Shaft Left & Right, 5/8" Bore, 4.34" High, 56C NEMA
Item #: 80900277
Brand: Boston Gear
Model #: 51964
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Centerline Distance (Decimal Inch) | 2.060 |
| Ratio | 20:1 |
| NEMA Size | 56C |
| PartNo | F721-20-B5-H |
| Shaft Style | Double Shaft Left/Right |
| Bore Size (Decimal Inch) | 0.625 |
| Height (Inch) | 4.34 |
| Maximum Torque Inch/Lbs (Pounds) | 892.00 |
| Maximum Input Horsepower | 1.40 |
| Output RPM at 1750 Input | 88.0 |
