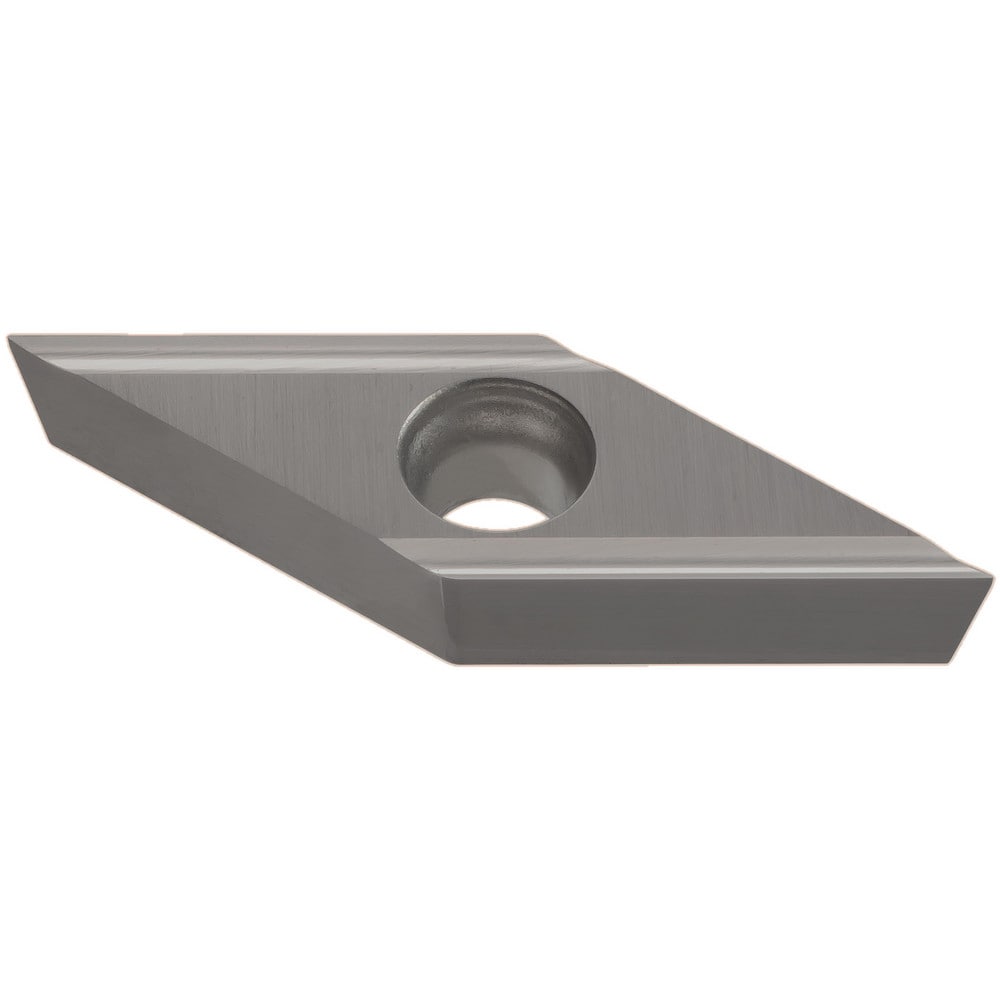

Turning Insert: VBET220.2LSN HTI10, Carbide
Item #: 05775051
Brand: Mitsubishi
Model #: 270078
Product Specifications
| ANSI Insert Code | VBET220.2 |
| ISO Insert Code | VBET110301 |
| Relief Angle | 5 |
| Insert Style | VBET |
| Corner Radius (mm) | 0.10 |
| Corner Radius (Decimal Inch) | 0.0039 |
| Included Angle | 35 |
| Manufacturer Grade | HTI10 |
| Coating/Finish | Bright/Uncoated |
| Insert Hand | Left Hand |
| Insert Thickness (Inch) | 1/8 |
| Insert Thickness | 3.18 |
| Insert Thickness (Decimal Inch) | 0.1250 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Inscribed Circle (mm) | 6.35 |
| Insert Material | Carbide |
| Insert Shape | V - Diamond (Rhombic) 35-Deg |
| Chip Breaker Operation | Light Machining; Finishing |
| Grade Characteristics | Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Side Clearance | Positive |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | V |
| Clearance Code | B |
| Tolerance Code | E |
| Primary Workpiece Material Code | K; N |
| Chip Breaker | SN |
| ANSI Size Code | 220.2 |
| ISO Size Code | 110301 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 2 |
