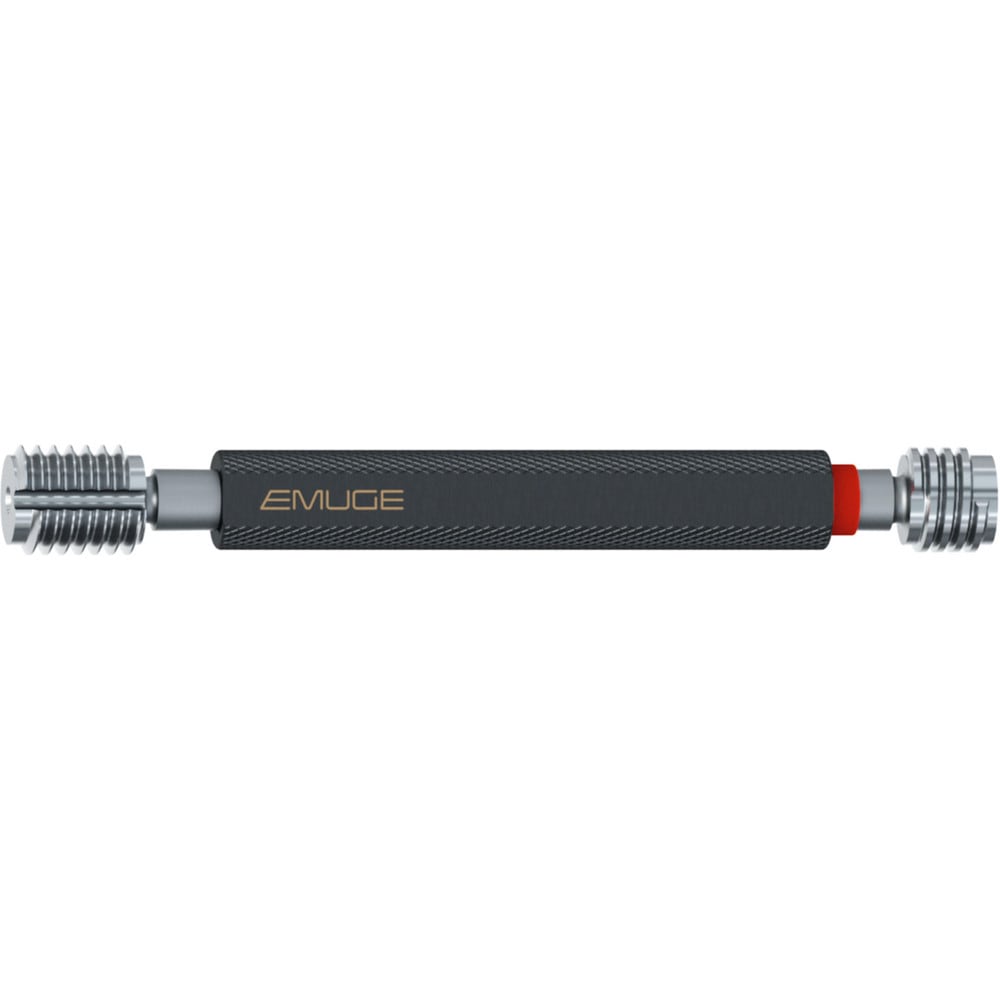

Plug Thread Go/No Go Gages; Go/No Go: Go, No Go; Thread Size: 5/8-18; Material: Steel; Classification: 3B; Go Pitch Diameter (Inch): 0.5889; Go Pitch Diameter (mm): 14.9580; No Go Pitch Diameter (mm): 15.0720; No Go Pitch Diameter (Decimal Inch): 0.59340
Item #: 02815413
Brand: Emuge
Model #: L0100160.5049
Product Specifications
| Go/No Go | Go; No Go |
| Thread Size | 5/8-18 |
| Material | Steel |
| Classification | 3B |
| Go Pitch Diameter (Inch) | 0.5889 |
| Go Pitch Diameter (mm) | 14.9580 |
| No Go Pitch Diameter (mm) | 15.0720 |
| No Go Pitch Diameter (Decimal Inch) | 0.59340 |
| Handle Size | 0 |
| Handle Included | Yes |
| Overall Length (Decimal Inch) | 4.4090 |
| Overall Length (mm) | 112.0000 |
| Thread Direction | Left Hand |
| Calibrated | Yes |
| Traceability Certification Included | Yes |
| Standards | Gauge dimensions according to ANSI/ASME B1.28; NIST; DIN2280 |
| Coating/Finish | Bright |
| Single Or Double End | Double |
| Thread Standard | UNF |
| UNSPSC Code | 41111619 |
