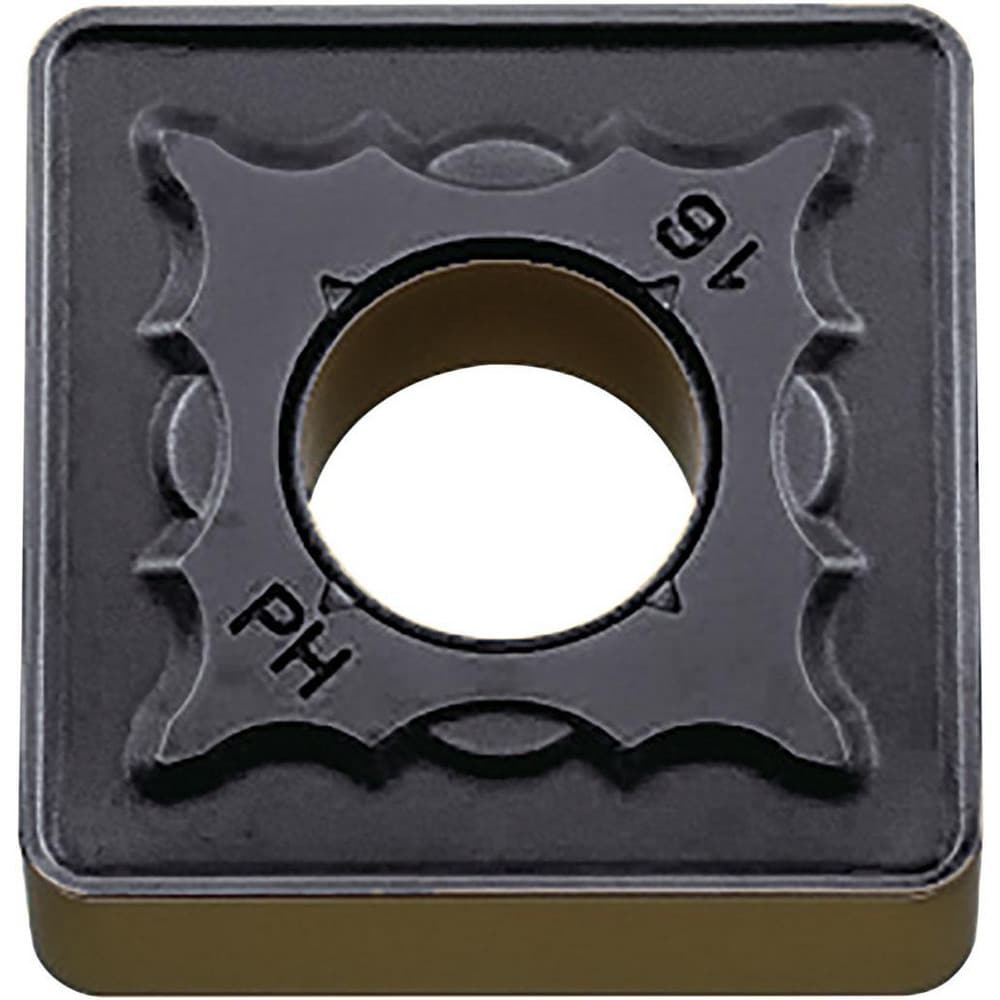

Turning Insert: SNMG543PH CA125P, Carbide
Item #: 04642989
Brand: Kyocera
Model #: TMK00195
Product Specifications
| ANSI Insert Code | SNMG543 |
| ISO Insert Code | SNMG150612 |
| Relief Angle | 0 |
| Insert Style | SNMG |
| Corner Radius (mm) | 1.20 |
| Corner Radius (Inch) | 3/64 |
| Corner Radius (Decimal Inch) | 0.0472 |
| Included Angle | 90 |
| Manufacturer Grade | CA125P |
| Coating/Finish | TiCN/Al2O3/TiN |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 1/4 |
| Insert Thickness | 6.35 |
| Insert Thickness (Decimal Inch) | 0.2500 |
| Series | ISO Insert |
| Inscribed Circle (Decimal Inch) | 0.6250 |
| Inscribed Circle (Inch) | 5/8 |
| Inscribed Circle (mm) | 15.88 |
| Insert Material | Carbide |
| Insert Shape | S - Square |
| Chip Breaker Operation | Medium Machining; Roughing |
| Grade Characteristics | Steel (P) - High Wear-Resistance to High Toughness |
| Side Clearance | Negative |
| Number Of Cutting Edges | 8 |
| Insert Shape Code | S |
| Hole Diameter (Decimal Inch) | 0.2500 |
| Hole Diameter (Mm) ( - 0 Decimals) | 6.35 |
| Insert Holding Method | Screw; Clamp |
| Clearance Code | N |
| Tolerance Code | M |
| Coating Process | CVD |
| Rake | Negative |
| Primary Workpiece Material | Alloy Steel; Carbon Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material Code | None |
| Iso Code | SNMG150612PH |
| Manufacturers Catalog Number | SNMG543PHCA125P |
| Chip Breaker | PH |
| Multi-Use Tool | Yes |
| Multi-Use Application | External Turning; Chamfering; Facing; Boring |
| ANSI Size Code | 543 |
| ISO Size Code | 150612 |
| UNSPSC Code | 23242107 |
| Insert Size Code | 543 |
