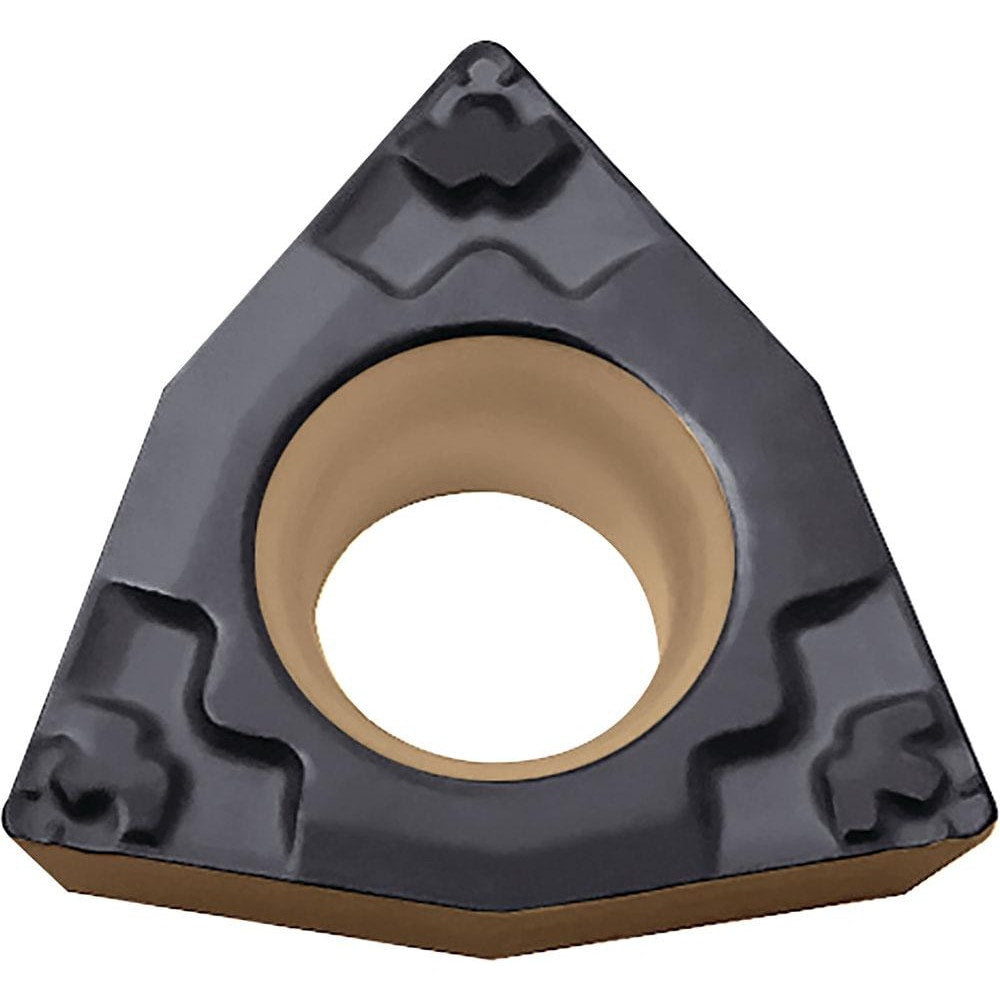

Turning Insert: WPMT321GP CA125P, Carbide
Item #: 04630562
Brand: Kyocera
Model #: TMK00469
Product Specifications
| ANSI Insert Code | WPMT321 |
| ISO Insert Code | WPMT160304 |
| Relief Angle | 11 |
| Insert Style | WPMT |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0158 |
| Included Angle | 80 |
| Manufacturer Grade | CA125P |
| Coating/Finish | TiCN/Al2O3/TiN |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 1/8 |
| Insert Thickness | 3.18 |
| Insert Thickness (Decimal Inch) | 0.1252 |
| Series | ISO Insert |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (mm) | 9.53 |
| Insert Material | Carbide |
| Insert Shape | W - Trigon 80-Deg |
| Chip Breaker Operation | Finishing |
| Grade Characteristics | Steel (P) - High Wear-Resistance to High Toughness |
| Side Clearance | Positive |
| Number Of Cutting Edges | 3 |
| Insert Shape Code | W |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Hole Diameter (Mm) ( - 0 Decimals) | 4.40 |
| Insert Holding Method | Screw; Clamp |
| Clearance Code | P |
| Tolerance Code | M |
| Coating Process | CVD |
| Rake | Positive |
| Primary Workpiece Material | Alloy Steel; Carbon Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material Code | None |
| Iso Code | WPMT160304GP |
| Manufacturers Catalog Number | WPMT321GPCA125P |
| Chip Breaker | GP |
| Multi-Use Tool | No |
| ANSI Size Code | 321 |
| ISO Size Code | 160304 |
| UNSPSC Code | 23242107 |
| Insert Size Code | 321 |
