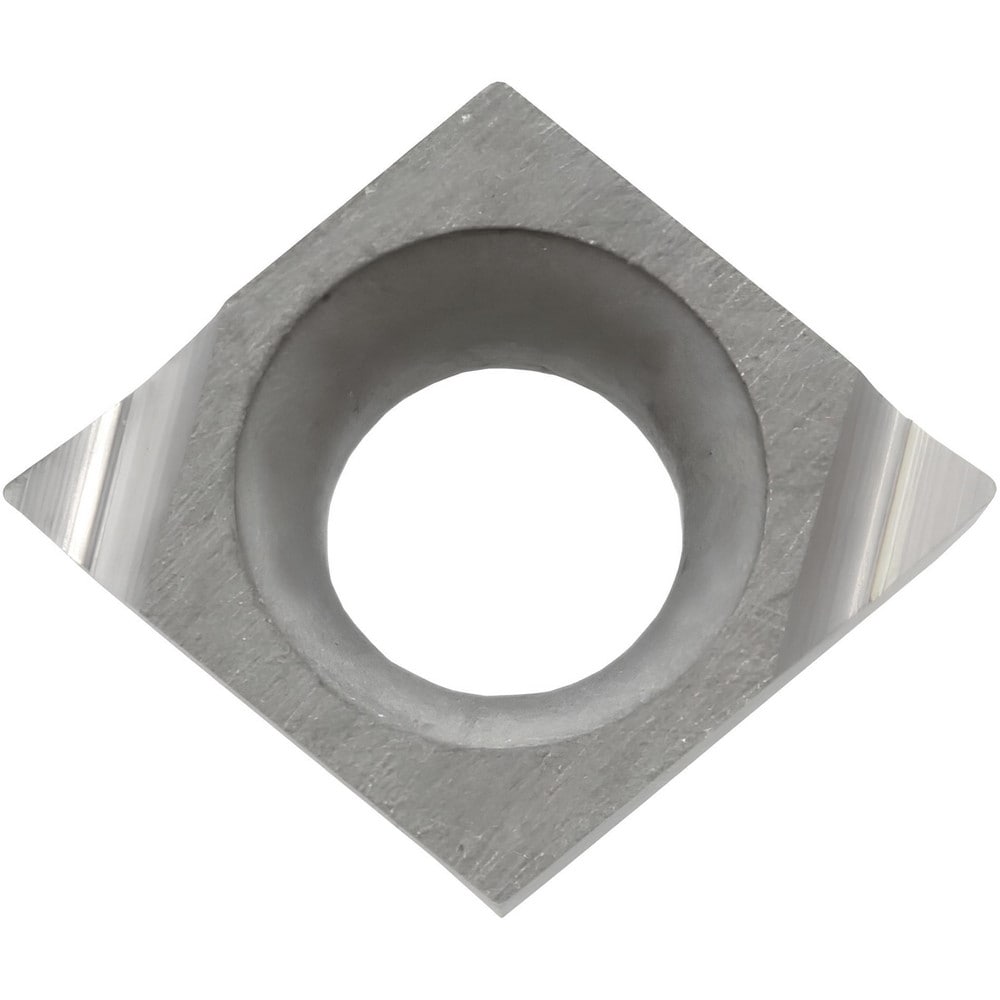

Boring Inserts; Insert Style: CCGT; Insert Size Code: 14111; Insert Material: Cermet; Material Grade: P01, P10, P20; Manufacturer Grade: TN60
Item #: 18245100
Brand: Kyocera
Model #: TSJ00007
Product Specifications
| Insert Style | CCGT |
| Insert Size Code | 14111 |
| Insert Material | Cermet |
| Material Grade | P01; P10; P20 |
| Manufacturer Grade | TN60 |
| Inscribed Circle (Decimal Inch) | 0.1690 |
| Hole Diameter (Decimal Inch) | 0.0906 |
| Insert Holding Method | Screw |
| Insert Hand | Left Hand |
| Corner Radius (Decimal Inch) | 0.0156 |
| Corner Radius (Inch) | 1/64 |
| Relief Angle | 7 |
| Rake | Positive |
| Chipbreaker | F |
| Series | ISOI |
| Coating Process | Uncoated |
| Included Angle | 80 |
| Insert Shape | Diamond |
| Number Of Cutting Edges | 2 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Iso Code | CCGT040104L-F |
| Rake Angle | 15 |
| Manufacturers Catalog Number | TSJ00007 |
| Length (Decimal Inch - 4 Decimals) | 0.1690 |
| Width (Decimal Inch - 4 Decimals) | 0.169 |
| Coating/Finish | TiCN; NbC |
| UNSPSC Code | 23242107 |
| Maximum Depth of Cut (Decimal Inch) | 0.0563 |
| Insert Style | CCGT |
| Insert Size Code | 14111 |
| Insert Material | Cermet |
| Material Grade | P01; P10; P20 |
| Manufacturer Grade | TN60 |
| Inscribed Circle (Decimal Inch) | 0.1690 |
| Hole Diameter (Decimal Inch) | 0.0906 |
| Insert Holding Method | Screw |
| Insert Hand | Left Hand |
| Corner Radius (Decimal Inch) | 0.0156 |
| Corner Radius (Inch) | 1/64 |
| Relief Angle | 7 |
| Rake | Positive |
| Chipbreaker | F |
| Series | ISOI |
| Coating Process | Uncoated |
| Included Angle | 80 |
| Insert Shape | Diamond |
| Number Of Cutting Edges | 2 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Iso Code | CCGT040104L-F |
| Rake Angle | 15 |
| Manufacturers Catalog Number | TSJ00007 |
| Length (Decimal Inch - 4 Decimals) | 0.1690 |
| Width (Decimal Inch - 4 Decimals) | 0.169 |
| Coating/Finish | TiCN; NbC |
| UNSPSC Code | 23242107 |
| Maximum Depth of Cut (Decimal Inch) | 0.0563 |
| MSC Part # | 18245100 |
| Mfr Part # | TSJ00007 |
| Country of Origin Country of Origin is subject to change | VARIOUS |
