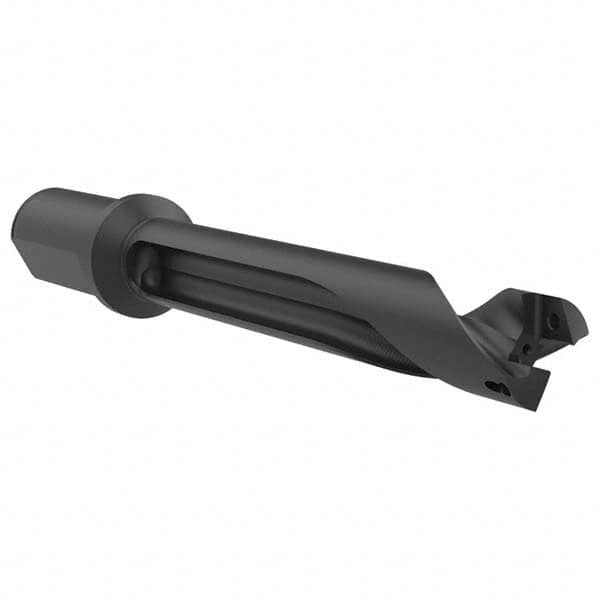

Allied Machine and Engineering - 1.0236" to 1.1416" Diam 3xD 3-27/64" Max Depth Straight Flute Spade Drill
Item #: 31750698
Brand: Allied Machine and Engineering
Model #: ST03260-125F
Features and Benefits
Straight flutes are used for horizontal machining center applications.
| Product Specifications | |
|---|---|
| Series | 26 |
| Minimum Drill Diameter (Decimal Inch) | 1.0236 |
| Maximum Drill Diameter (Decimal Inch) | 1.1416 |
| Shank Type | Straight Shank with Flange |
| Shank Diameter (Inch) | 1-1/4 |
| Overall Length (Inch) | 7-11/32 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (Inch) | 3-27/64 |
| Flute Type | Straight Flute |
| Body Length (Inch) | 5-1/16 |
| Shank Length (Inch) | 2-9/32 |
| Series Code/Seat Size | 26 |
| Through Coolant | Yes |
| Toolholder Material | Steel |
| Coolant Hole Thread Type | BSP |
| Shank End Coolant Hole Thread Size (Inch) | 1/4 |
