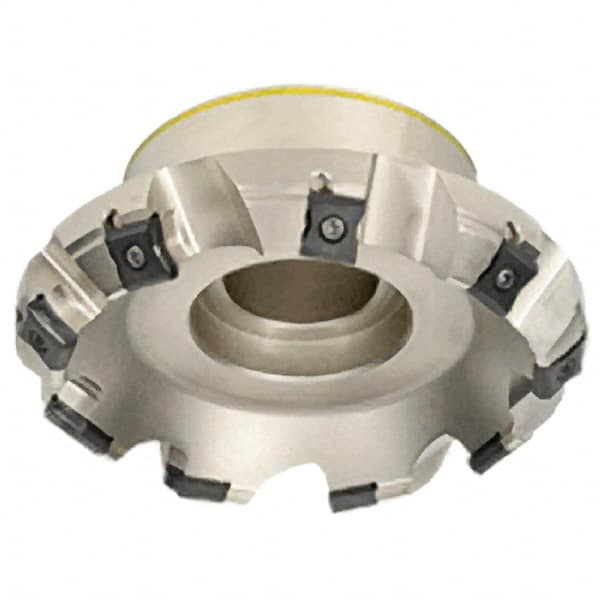

Iscar - 3.79" Cut Diam, 1" Arbor Hole, 0.295" Max Depth of Cut, 45° Indexable Chamfer & Angle Face Mill - 6 Inserts, LN.. 1506.. Insert, Right Hand Cut, 6 Flutes, Series TangMill
Item #: 81006637
Brand: Iscar
Model #: 3102754
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 3.7900 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Lead Angle | 45 |
| Overall Height (Decimal Inch) | 2.0000 |
| Insert Compatibility | LN.. 1506.. |
| Series | TangMill |
| Through Coolant | No |
| Maximum Depth of Cut (Decimal Inch) | 0.2950 |
| Number of Cutter Inserts | 6 |
| Insert Holding Method | Screw |
| Cutter Style | F45LN-N15 |
| Number of Flutes | 6 |
| Cutting Direction | Right Hand |
| Cutting Edge Length (Decimal Inch) | 0.3950 |
| Maximum Insert Radius (Decimal Inch) | 0.0310 |
| Complete Insert Compatibility | LNAT 1506AN-W; LNHW 1506 ANTN; LNKX 150608AN-N PL; LNKX 150608ANTN MM; LNMT 150608ANTN MM; LNMW 150608 ANTN |
