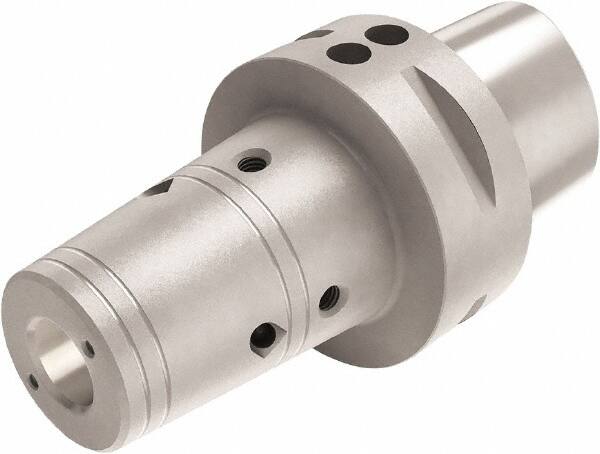

Seco - 16mm Hole Diam, C6 Modular Connection Shrink Fit Tool Holder & Adapter - 85mm Projection, 33mm Nose Diam, 50.5mm Clamping Depth, 38,000 RPM, Through Coolant
Item #: 81024259
Brand: Seco
Model #: 84244
Exact Tooling IR#: 04
Features and Benefits
Modular connections are used in compatible modular tool holder systems and allow for tool changes without removing the tool shank from the machine spindle.
| Product Specifications | |
|---|---|
| Shank Type | Modular Connection |
| Modular Connection Size | C6 |
| Hole Diameter (Decimal Inch) | 0.6299 |
| Hole Diameter (mm) | 16.00 |
| Projection (mm) | 85.00 |
| Projection (Decimal Inch) | 3.3465 |
| Nose Diameter (mm) | 33.00 |
| Nose Diameter (Decimal Inch) | 1.2992 |
| Through Coolant | Through Coolant |
| Clamping Depth (mm) | 50.50 |
| Clamping Depth (Decimal Inch) | 1.9882 |
| Overall Length (mm) | 123.00 |
| Overall Length (Decimal Inch) | 4.8425 |
| Balanced to (RPM) | 38000 |
