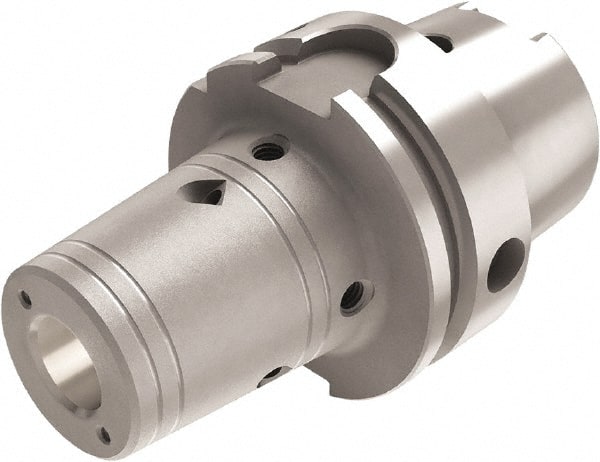

Seco - 25mm Hole Diam, HSK63A Taper Shank Shrink Fit Tool Holder & Adapter - 85mm Projection, 48mm Nose Diam, 58.5mm Clamping Depth, 30,000 RPM, Through Coolant
Item #: 81024325
Brand: Seco
Model #: 84219
Exact Tooling IR#: 04
Features and Benefits
Taper shanks are held in the machine spindle or in a toolholder clamping system.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | HSK63A |
| Hole Diameter (Decimal Inch) | 0.9843 |
| Hole Diameter (mm) | 25.00 |
| Projection (mm) | 85.00 |
| Projection (Decimal Inch) | 3.3465 |
| Nose Diameter (mm) | 48.00 |
| Nose Diameter (Decimal Inch) | 1.8898 |
| Through Coolant | Through Coolant |
| Clamping Depth (mm) | 58.50 |
| Clamping Depth (Decimal Inch) | 2.3031 |
| Overall Length (mm) | 117.00 |
| Overall Length (Decimal Inch) | 4.6063 |
| Balanced to (RPM) | 30000 |
